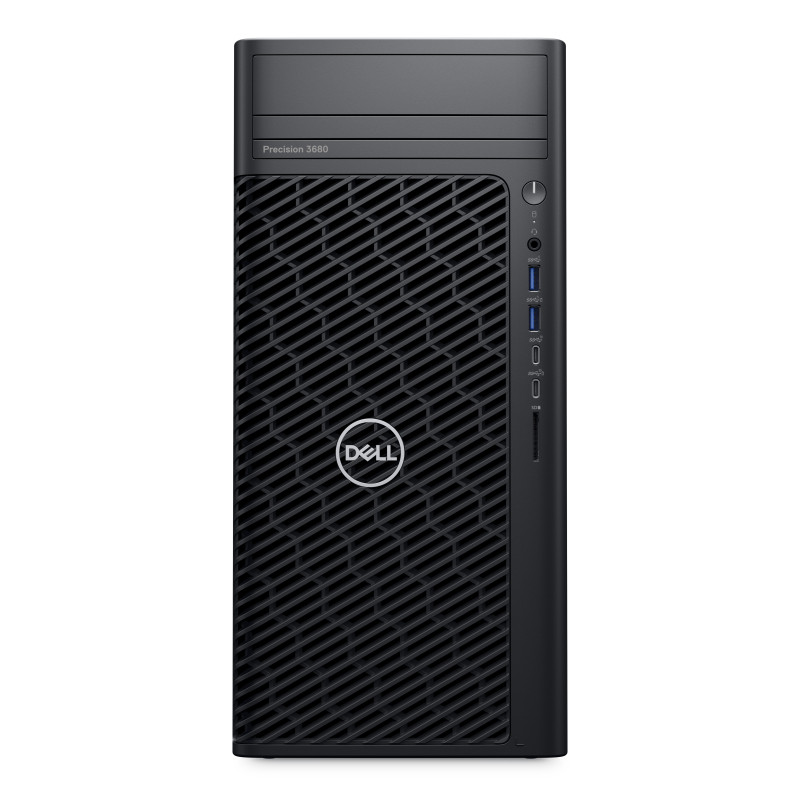

DELL Precision 3680. Processor family: Intel® Core™ i7, Processor model: i7-14700K. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 1000 W. Chassis type: Tower. Product type: Workstation. Product color: Black

Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700K
Processor generation	Intel® Core™ i7 (14th gen)
Processor cores	20
Processor threads	28
Processor boost frequency	5.6 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	4.3 GHz
Performance-core base frequency	3.4 GHz
Efficient-core base frequency	2.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Number of processors installed	1
Number of processors supported	1
Processor base power	125 W
Maximum turbo power	253 W
Internal memory	32 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 16 GB
Memory slots	4x DIMM
ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory data transfer rate	4400 MT/s
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Compatible memory cards	Not supported
RAID support	No
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
Bluetooth	No
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
Thunderbolt 3 ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
PowerShare	Yes
Number of USB ports with PowerShare support	2
DisplayPorts quantity	2
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Combo headphone/mic port	Yes
Number of rear USB ports	6
Number of front USB ports	4
Number of front audio ports	1
Number of rear audio ports	1
Chassis type	Tower
Product color	Black
Placement supported	Vertical
Water cooling system	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Viewing window	No
Intel® vPro™ Platform Eligibility	Yes
Product type	Workstation
Market positioning	Business
Motherboard chipset	Intel W680
Audio chip	Realtek ALC3246-CG
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Number of speakers	1
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English, Spanish, French, Italian, Portuguese
Trial software	No Microsoft Office Licence Included - 30 day Trial Offer Only
Power supply	1000 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47/63 Hz
80 PLUS certification	80 PLUS Platinum
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration	0.52 G
Non-operating vibration	2 G
Operating shock	40 G
Non-operating shock	105 G
Sustainability certificates	ENERGY STAR, EPEAT Gold
Width	6.81" (173 mm)
Depth	16.5" (420.2 mm)
Height	14.7" (372.9 mm)
Cables included	AC
Display included	No
Maximum on-board graphics card resolution	7680 x 4320 pixels
Sustainability compliance	Yes
