Tough Enough for Any Job

Tested against 12 military-grade requirements and passing more than 200 quality checks, the L570 is engineered to survive the bumps and bruises of life.

Approved by a Show of Hands – 100 Million of Them

L570 delivers the award-winning keyboard experience that IT Pros and end users alike love and expect from ThinkPad. Having been shipped on 100 million systems, the legendary keyboard delivers a more accurate and comfortable experience all day, every day. Take it from those who know – all 100 million of them.

Built on a Clean Foundation

L570 is now available with Microsoft Windows 10 Pro Signature Edition, which eliminates trial ware and unwanted apps. No distractions for end users, easy to provision by IT Pros. A no-nonsense operating system.

Explosive Power Without Volatility

Pairing the new 7th Generation Intel® Core™ i processors with Intel® Optane™ memory means your L570 is a high-performance machine, with the power to handle whatever your business throws at it. Intel® Optane™ technology lets you release the true power of the Intel® Core™ processor, eliminating bottlenecks with fast storage memory that nevertheless stays non-volatile. Kick it into high gear, and don't look back.

Choose Your Drive

When you configure your L570 storage, you can go with the latest and fastest PCIe solid-state drive or a larger-capacity mechanical hard disk drive. Each has advantages, go with whichever will integrate better with your company and preferences.

Unplug Without Fear

L570 has all the battery power you need – up to 11 hours – to move from your desk to meetings and elsewhere, and stay productive throughout the business day with plenty of charge left afterward.

Cut the Cord Clutter

Keep your space clean and organized by connecting all of your peripherals to the ThinkPad Pro Dock. That way, when you connect your L570 to the dock in a snap, everything else you need will already be there at your fingertips.

Customize Your Experience, Looking Forward or Back

L-Series laptops come with a wide variety of ports – from legacy technology to the cutting edge – so you can build an ecosystem to fit any needs. Choose from VGA, mDP, LTE-A, RJ-45, and mechanical and USB 3.0 docking. Because who needs dongles?

Data's Just a Click Away

With two thirds of all businesses looking to use cloud services, L570 has onboard LTE-A (4G) connectivity – so even when you're out of WiFi range, you can still access your data and apps with a simple click.

Get Help if You Need It – No Matter Where You Are

ThinkPad L-Series laptops come with a standard worldwide warranty. Now you can get help in 160 countries around the world. These machines travel better than some people do.

Amp Up Your Graphics

An optional discrete graphics card means your L570 will have more processing power to handle more graphics-intensive apps. Rely on a dedicated processor to rev up your graphics capability without draining precious processing power from your software.

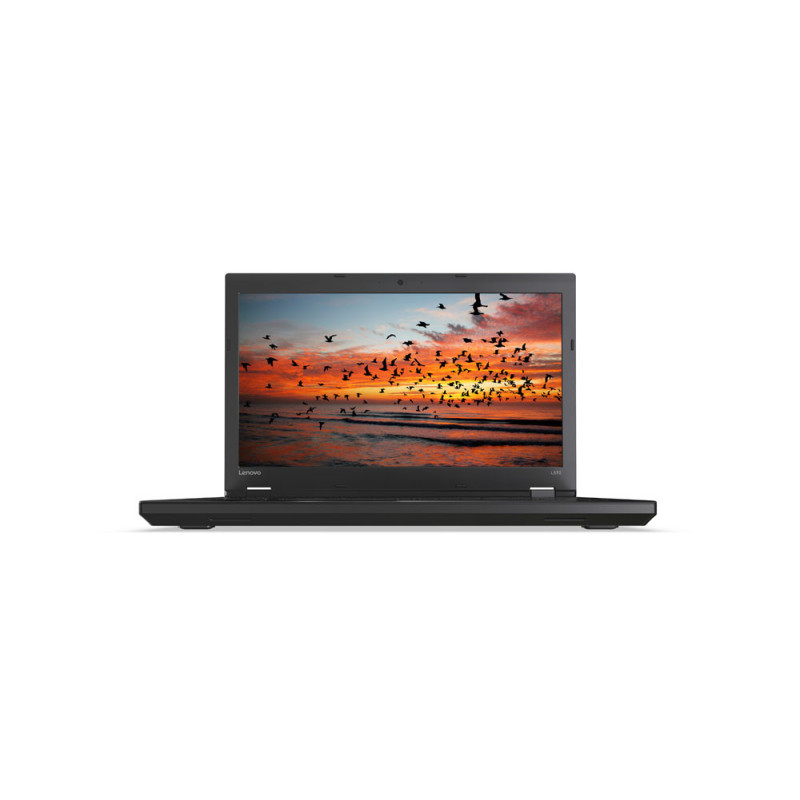

Lenovo ThinkPad L570 Refurbished. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-6300U, Processor frequency: 2.4 GHz. Display diagonal: 15.6", HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD, Optical drive type: DVD±RW. Operating system installed: Windows 10 Pro. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Housing material	Acrylonitrile butadiene styrene (ABS)
Market positioning	Business
Refurbished	Yes
Display diagonal	15.6"
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Screen shape	Flat
Contrast ratio (typical)	600:1
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-6300U
Processor frequency	2.4 GHz
Processor generation	6th gen Intel® Core™ i5
Processor cores	2
Processor threads	4
Processor boost frequency	3 GHz
System bus rate	4 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1356 (Socket B2)
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor codename	Skylake
Bus type	QPI
Stepping	D1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.5 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express slots version	3.0
PCI Express configurations	1x4, 4x1
ECC supported by processor	No
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Total storage capacity	256 GB
Storage media	SSD
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 520
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
Maximum on-board graphics card memory	1.74 GB
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	1916
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Front camera HD type	HD
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	0
Combo headphone/mic port	Yes
Docking connector	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1
Numeric keypad	Yes
Pointing device	ThinkPad UltraNav
Keyboard backlit	No
Spill-resistant keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Smart Response Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Small Business Advantage (Intel® SBA)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel Clear Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel Flex Memory Access	Yes
Intel® Smart Cache	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Trusted Execution Technology	Yes
Intel Enhanced Halt State	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel TSX-NI	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® OS Guard	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel 64	Yes
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor code	SR2F0
CPU configuration (max)	1
Embedded options available	Yes
Graphics & IMC lithography	14 nm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Identity Protection Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel TSX-NI version	1.00
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	88190
Conflict-Free processor	Yes
Battery capacity	48 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery life (max)	14.8 h
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes
Cable lock slot	Yes
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Compliance certificates	RoHS
Sustainability certificates	ENERGY STAR
Weight	5.25 lbs (2.38 kg)
Width	14.8" (377 mm)
Depth	10" (255 mm)
Height (front)	1.09" (2.76 cm)
Height (rear)	1.21" (3.08 cm)
AC adapter included	Yes
Manual	Yes
Quick start guide	Yes
Power cord included	Yes
LightScribe	No
Maximum internal memory (64-bit)	32 GB
Intel segment tagging	Home office, Small Business
