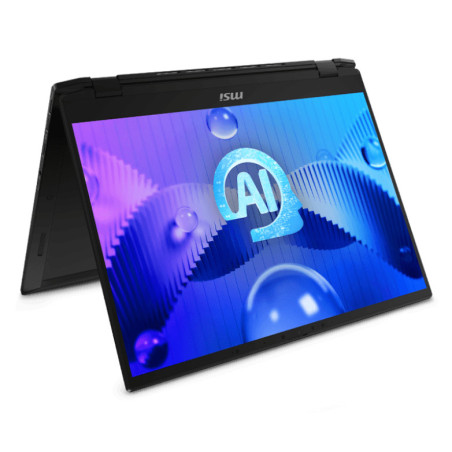

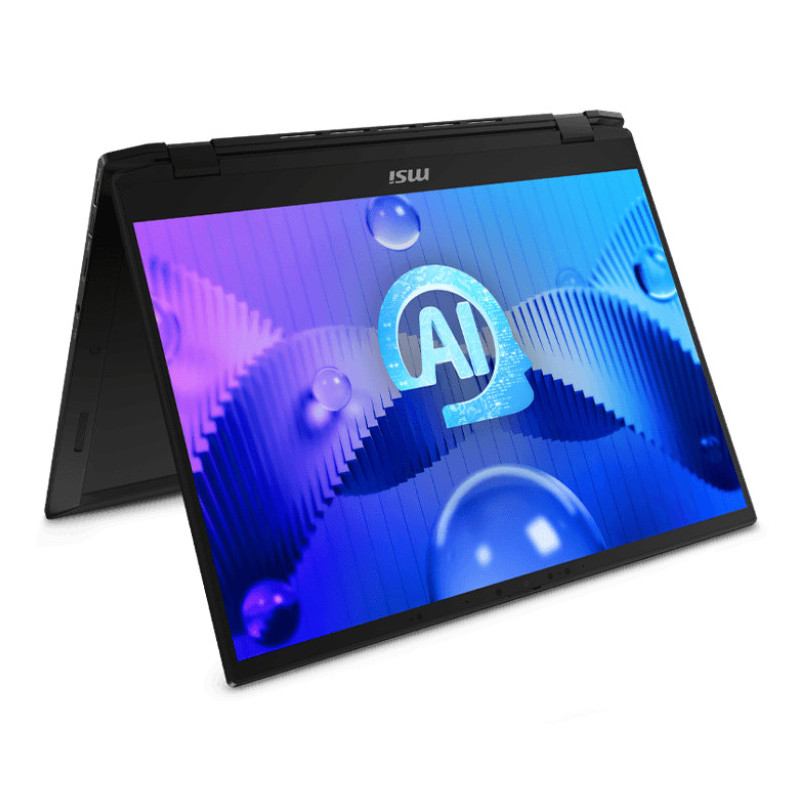

MSI Summit E16 AI Studio - A1V. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel Core Ultra 7, Processor model: 155H. Display diagonal: 16", HD type: Quad HD+, Display resolution: 2560 x 1600 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Hybrid (2-in-1)
Product color	Black
Form factor	Convertible (Folder)
Display diagonal	16"
Display resolution	2560 x 1600 pixels
Touchscreen	Yes
HD type	Quad HD+
Native aspect ratio	16:10
RGB color space	DCI-P3
Color gamut	100%
Maximum refresh rate	165 Hz
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	155H
Processor cores	16
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	1.4 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	4.8 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	6400 MHz
Memory form factor	On-board
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 4060
On-board graphics card model	Intel Arc Graphics
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	Intel Arc Graphics
Audio system	DTS Audio Processing
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	3
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Killer Wi-Fi 7 BE1750
WLAN controller manufacturer	Intel
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
Motherboard chipset	Intel SoC
Ambient light sensor	Yes
Accelerometer	Yes
Proximity sensor	Yes
Gyroscope	Yes
Numeric keypad	Yes
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	White
Operating system installed	Windows 11 Pro
Battery capacity	82 Wh
Number of battery cells	4
AC adapter power	140 W
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Weight	4.63 lbs (2.1 kg)
Width	14.1" (358 mm)
Depth	10.2" (258.6 mm)
Height (front)	0.665" (1.69 cm)
Height (rear)	0.685" (1.74 cm)
