OWN THE GAME
The all-new AORUS MASTER 16 features the latest Intel® Core™ Ultra 200HX Series processor with AI PC capabilities and the NVIDIA® GeForce RTX™ 50 Series Laptop GPU that powers advanced AI. The most capable WINDFORCE Infinity EX Cooling Technology ever offers up to 230-watt thermal power for dominant performance in gaming. Thanks to GIGABYTE Intelligence, the system and experience can be more intelligently tailored to your needs with the assistance of GiMATE. Longer battery life. More details on the OLED display. The AORUS MASTER 16 is your key to own the game.

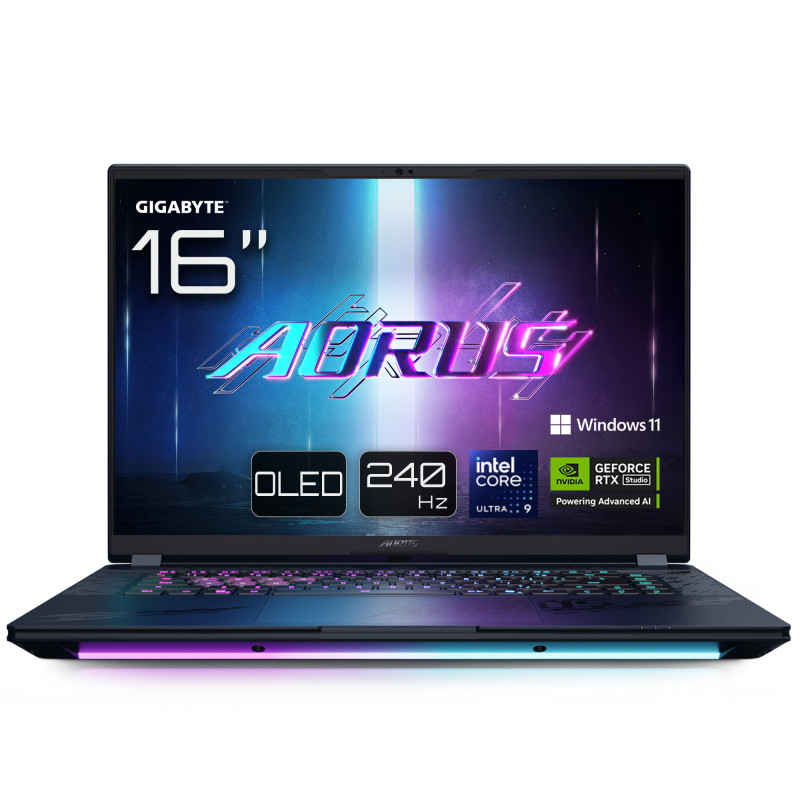

GIGABYTE AORUS MASTER 16 BZHC6PTE64SP. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 16", HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5090. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Color name	Dark Tide
Country of origin	Taiwan
Original brand name	GIGABYTE
Display diagonal	16"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	OLED
Native aspect ratio	16:10
Maximum display brightness (HDR)	500 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Maximum refresh rate	240 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR True Black 500
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	275HX
Processor generation	Intel Core Ultra (Series 2)
Processor cores	24
Processor threads	24
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.7 GHz
Efficient-core base frequency	2.1 GHz
Processor cache	36 MB
Processor base power	55 W
Maximum turbo power	160 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	32 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5090
On-board graphics card model	Intel Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	24 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Graphics
Audio system	Dolby Atmos
Number of built-in speakers	4
Speaker power	2 W
Built-in microphone	Yes
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Thunderbolt 5 ports quantity	1
Intel® Thunderbolt 4	Yes
Intel® Thunderbolt 5	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	RGB
Keyboard backlit zone	3-zone RGB
Operating system installed	Windows 11 Pro
Battery capacity	99 Wh
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery weight	11.9 oz (338 g)
AC adapter power	330 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Trusted Platform Module (TPM)	Yes
Weight	5.51 lbs (2.5 kg)
Width	14.1" (357 mm)
Depth	10" (254 mm)
Height (front)	0.906" (2.3 cm)
Height (rear)	1.18" (2.99 cm)
Package width	4.25" (108 mm)
Package depth	16.9" (429 mm)
Package height	13.3" (339 mm)
Package weight	11.5 lbs (5.2 kg)
AC adapter included	Yes
Quantity per shipping (inner) case	1 pc(s)
Batteries included	Yes
Warranty period	2 year(s)
Number of batteries	1
