Performance, convenience and convenience in one product
- 40.64 cm (16") portable work station with processor Intel® CoreTM Ultra and up to Intel vPro®
- Neurological Processing Unit (NPU) ready for AI for large workloads and intensive multitasking
- Allows high quality workloads and animations with up to GPU NVIDIA® RTXTM 3000 Ada
- Protected by ThinkShield, ISV certified and tested MIL-STD 810H for long life

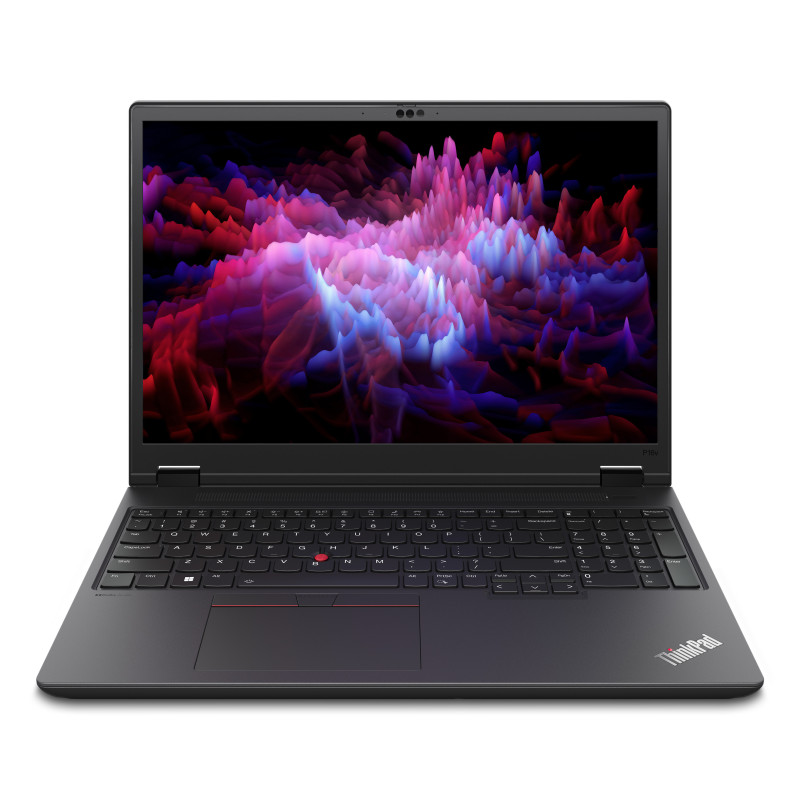

Lenovo ThinkPad P16v Gen 2 (Product Type: Mobile Workstation, Form Factor: Clamshell. Family of the processor: Intel Core Ultra 7, Processor Model: 155H. Diagonal screen dimensions: 40.6 cm (16"), HD Type: WUXGA, Display Resolution: 1920 x 1200 Pixel. Installed RAM: 32 GB, RAM type: DDR5-SDRAM. Total storage capacity: 1 TB, Memory Support: SSD. Integrated Graphic Card Model: Intel Arc Graphics, dedicated graphics card: NVIDIA RTX 1000 Ada. Operating system included: Windows 11 Pro. Product color: Black

Product type	Mobile work station
Product color	Black
Form factor	Shell shell
Color name	Black
Structure Material	Acrylonitrile Butadiene Ironene (ABS), Polycarbonate (PC)
Diagonal screen size	40,6 cm (16")
Display Resolution	1920 x 1200 Pixel
Touch screen	No
Type HD	WUXGA
Type of panel	IPS
LED Backlight	Yes
Native aspect ratio	16:10
Anti-reflective screen	Yes
Brightness of the screen	300 cd/m2
RGB color space	RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT RT
Color range	45%
Maximum update time	60 Hz
Contrast ratio	800:1
Family of the processor	Intel Ultra 7 core
Processor Manufacturer	Intel
Processor Model	155H
Generation of the processor	Intel Core Ultra (Series 1)
Number of cores of the processor	16
Number of processor threads	22
Maximum frequency of the turbo processor	4,8 GHz
Heart of performance	6
Efficient cores	8
Low energy efficiency heart	2
Maximum Processor Frequency Turbo Performance-core	4,8 GHz
Turbo maximum frequency of the efficient-core processor	3,8 GHz
Turbo maximum frequency of low energy consumption core	2.5 GHz
Basic performance core frequency	1,4 GHz
Efficient Core Basic Frequency	0,9 GHz
Low Energy Efficiency Core Basic Frequency	700 MHz
Processor Cache	24 MB
Processor cache type	Smart cables
Basic power of the processor	28 W
Maximum turbo power	115 W
Neural Processing Unit (NPU)	Intel Boost
Max frequency NPU	1,4 GHz
Space Support	Yes
Windows Studio Effects Support	Yes
Support of AI data types on NPU	FP16, FP32, Int8
Artificial Intelligence Framework supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
RAM installed	32 GB
Maximum supported RAM	96 GB
Type of RAM	DDR5-SDRAM
Memory speed	5600 MHz
Memory Shape Factor	SO-DIMM
Memory structure	2 x 16 GB
Slot memory	2x SO-DIMM
Memory channels	Double channel
Non-ECC	Yes
Total storage capacity	1 TB
Memory Support	SSD
Type of optical unit	No
Total SSD capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
Solid State Drive Interface (SSD)	PCI Express 4.0
NVMe	Yes
SSD Size	M.2
Integrated Card Reader	Yes
Types of memory cards	SD
Integrated graphics card	Yes
Separate graphics card adapter	Yes
Dedicated graphics card	NVIDIA RTX 1000 Ada
Integrated Graphic Card Model	Intel Graphics Arc
Discrete manufacturer of GPU	NVIDIA
Dedicated Graphic Memory	6 GB
Graphic card memory type	GDDR6
Integrated GPU Manufacturer	Intel
Integrated Graphic Card Adapter Family	Intel Graphics Arc
Audio Chip	Realtek ALC3287
Audio system	Dolby Audio Premium
Number of integrated speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (number)	5 MP
Infrared camera (IR)	Yes
Camera for private life	Yes
Type of privacy	Privacy protection shutter
Mobile network connection	No
Standard Wi-Fi	Wi-Fi 6E (802.11ax)
Standard Wi-Fi	Wi-Fi 6E (802.11ax)
Type of antenna	2x2
WLAN control device model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Ethernet LAN connection	Yes
Ethernet LAN transfer speed	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
Communication in Near Field (NFC)	No
WWAN	Not installed
Quantity USB 2.0 ports	0
Quantity of USB ports 3.2 Gen 1 (3.1 Gen 1) type A	1
Quantity of USB ports 3.2 Gen 1 (3.1 Gen 1) type C	0
Quantity HDMI ports	1
Quantity of Ethernet LAN ports (RJ-45)	1
HDMI version	2.1
Quantity of Thunderbolt 4 ports	2
Intel® Thunderbolt 4	Yes
Combined jack for microphone/cuffie	Yes
Alternative Type C USB DisplayPort Mode	Yes
USB Sleep-and-Charge	Yes
Sleep-and-Charge USB ports	1
Motherboard Chipset	Intel SoCs
Numerical keyboard	Yes
Pointing device	ThinkPad Ultra
backlit keyboard	Yes
Water resistant	Yes
Keyboard language	Italian
Operating system included	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German, DUT, English, French, ITA
Battery capacity	90
Battery technology	Lithium Polymers (LiPo)
Fast charging	Yes
AC power dissipation adapter	170 W
AC Frequency Adapter	50/60 Hz
AC input voltage adapter	100 - 240 V
USB power supply	Yes
Lock Cable	Yes
Type of cable block slot	Kensington
Fingerprint reader	Yes
Smart Card Reader	No
Windows Hello	Yes
Trust Platform Module (TPM)	Yes
trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection	BIOS, Access, SSD, Supervisor
Operating temperature range	5 - 35 °C
Temperature range	5 - 43 °C
Operating humidity range	8 - 95%
Relative humidity	5 - 95%
Maximum shipment altitude	3048 m
Certificates of conformity	RoHS
Certification	ENERGY STAR® 8.0 Registered EPEATTM Gold[3] RoHS compliance TCO 9.0 certificate Military test MIL-STD-810H exceeded
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Weight	2,22 kg
Width	365 mm
Depth	262 mm
Height	24.7 mm
Conformity to sustainability	Yes
