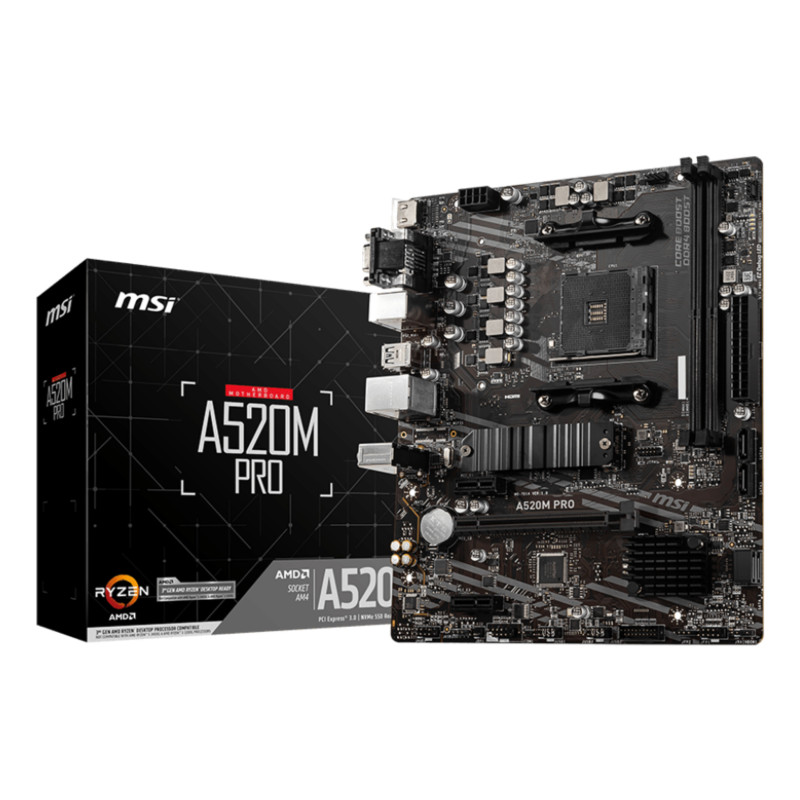

MSI A520m Pro. Processor manufacturer: AMD, Processor socket: Socket AM4, compatible processors: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, supported maximum memory: 64 GB, Type of memory slot: DIMM. Supported storage unit interfaces: PCI Express 3.0, SATA, supported storage types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Type of Ethernet Interface: Gigabit Ethernet, LAN Controller: Realtek 8111H

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processors	AMD Ryzen 3000 Series
Maximum number of SMP processors	1
Supported memory types	Ddr4-SDRAM
Number of memory slots	2
Supported maximum memory	64 GB
Type of memory slot	DIMM
Memory channels	Dual-channel
Compatibility etc.	Etc. & Non-etc.
Supported memory speed	1866,2133,240,2667,2800,2933,3000,3066,300,3466,3600,3733,3866,4000,4133,4266,4400,4466 MHz
Buffer	No
Supported storage unit interfaces	PCI Express 3.0, SATA
Types of supported storage units	HDD & SSD
RAID levels	0, 1, 10
Maximum resolution	4096 x 2160 pixels
USB 2.0 connectors	2
USB 3.2 Jan 1 connectors (3.1 Jan 1)	1
USB 3.2 Jan 2 connectors (3.1 Jan 2)	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Total number of SATA connectors	4
Number of Parallel ATA connectors	0
Front audio panel connector	Yup
Front panel connector	Yup
ATX connector (24-pin)	Yup
CPU fan connector	Yup
Number of fan connectors chassis	1
Intrusion connector of the frame	Yup
USB 2.0 port quantities	2
Quantity of USB ports 3.2 Jan 1 (3.1 Jan 1) type A	4
Quantity of USB ports 3.2 Jan 1 (3.1 Jan 1) type C	0
Quantity of USB ports 3.2 Jan 2 (3.1 Jan 2) type A	0
Quantity of USB ports 3.2 Jan 2 (3.1 Jan 2) type C	0
LAN ethernet ports quantities (RJ-45)	1
VGA ports quantities (D-sub)	1
HDMI ports quantities	1
DVI-D ports quantities	0
Quantity of eSATA ports	0
PS / 2 ports quantities	1
DisplayPorts quantity	1
Microphone, entrance plug	Yup
WiFi	No
LAN Ethernet connection	Yup
Type of Ethernet interface	Gigabit Ethernet
LAN controller	Realtek 8111h
Component for	PC
Motherboard form factor	Micro ATX
Chipset family for motherboard	AMD
Motherboard chipset	AMD A520
Audio system	7.1 channels
Audio chip	Realtek ALC892
Power type	ATX
Number of mounting holes	6
PCI Express X1 slot (Gen 3.x)	2
PCI Express X16 slot	1
M.2 slot number (m)	1
Harmonized system code (SA)	84733020
Width	244 mm
Depth	210 mm
Height	65 mm
Weight	698 g
