Improve your computer experience with the renowned series of motherboards GIGABYTEAORUS, AERO and GIGABYTE. Featuring innovative design and advanced features, these cards offer outstanding performance and reliability. Whether you're a player, content creator or a professional, our series meet your needs, ensuring uncompromising quality and cutting-edge technology.

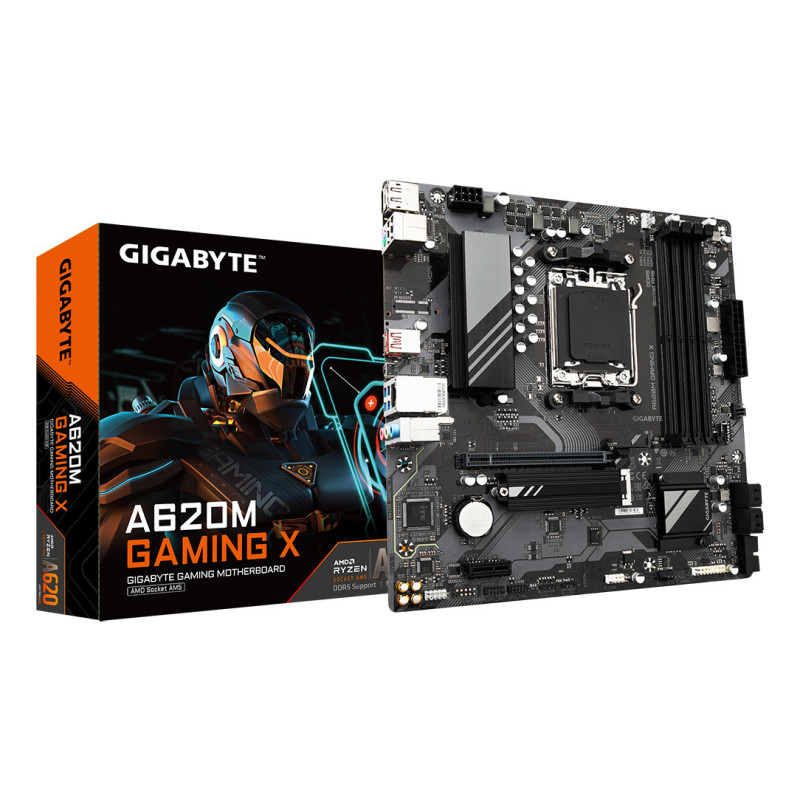

GIGABYTE A620M GAMING X Motherboard - Support CPU AMD Ryzen 8000, 8+2+1 Digital VRM Phases, up to 8000MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible Processors: AMD Ryzen series 7000. Supported memory types: DDR5-SDRAM, maximum supported RAM: 192 GB, type of memory slot: DIMM. Supported storage interfaces: M.2, SATA III, Types of supported storage drives: HDD & SSD, RAID Levels: 0, 1, 10. Maximum resolution: 4096 x 2160 Pixel. USB connector: USB type A, USB type-C

Manufacturer of processors	AMD
Taken for processor	Socket AM5
Compatible Processes	AMD Ryzen series 7000
Supported Socket Processors	Socket AM5
Maximum internal memory supported by the processor	192 GB
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum supported RAM	192 GB
type of memory slot	DIMMY
Memory channels	Dual-channel
ECC compatibility	Non-ECC
Supported memory speed	4400,4800,5200,5600,6000,6200,6400,6800,7000,7200,7600,7800 MHz
Maximum RAM supported speed	8000 MHz
supported memory module capacity	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Without buffer	Yes
Supported storage drive interfaces	M.2, SATA III
Types of supported storage drives	HDD and SSD
Number of supported hard drives	4
number of supported storage devices	5
RAID support	Yes
RAID Levels	0, 1, 10
Parallel process technology	Not supported
Maximum resolution	4096 x 2160 Pixel
HDCP	Yes
DirectX version	12.0
USB 2.0 connectors	1
USB Connectors 3.2 Gen 1 (3.1 Gen 1)	2
USB Connectors 3.2 Gen 2 (3.1 Gen 2)	0
Number of SATA III connectors	4
Total number of SATA connectors	4
Front audio panel connector	Yes
Front panel connector	Yes
ATX connector (24-PIN)	Yes
CPU fan connector	Yes
EPS power connector (8-Pin)	Yes
TPM connector	Yes
12V power connector	Yes
LED connector RGB	Yes
Quantity USB 2.0 ports	2
Quantity of USB ports 3.2 Gen 1 (3.1 Gen 1) type A	2
Quantity of USB ports 3.2 Gen 1 (3.1 Gen 1) type C	1
Quantity of USB ports 3.2 Gen 2 (3.1 Gen 2) Type A	1
Quantity of USB ports 3.2 Gen 2 (3.1 Gen 2) type C	0
Quantity of Ethernet LAN ports (RJ-45)	1
Quantity of VGA ports (D-Sub)	0
Quantity HDMI ports	1
Quantity DVI-D ports	0
Quantity of PS/2 doors	1
HDMI version	2.1
Quantity DisplayPorts	1
displayPort version	1.4
Headphone outputs	3
Microphone, input plug	Yes
USB Connector	USB Type A, USB Type-C
Wi-Fi	No
Ethernet LAN connection	Yes
Type of Ethernet interface	Gigabit Ethernet
Component for	PC
Form factor of the motherboard	micro ATX
Family of chipset for motherboard	AMD
Motherboard Chipset	AMD A620
Audio system	7.1 channels
Product color	Brown
Monitoring of PC health status	Fan, Temperature, Voltage, Water Cooling
Windows operating system supported	Windows 10 x64, Windows 11 x64
x1 PCI Express slot	1
Slot PCI Express x16	1
Number of slots M.2 (M)	1
Type BIOS	UEFI AMI
BIOS Memory Size	256 Mbit
ACP version	5.0
CMOS Reset Jumper	Yes
Version of desktop management interface (DMI)	2.7
BIOS Management System Version (SMBIOS)	2.7
Country of origin	China China China
Carton quantity to be shipped	1 pc
Battery weight	3
Lithium Weight for Battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Width packing	270 mm
Packaging depth	268 mm
Height packing	68 mm
Packaging weight	892 g
Width	244 mm
Depth	244 mm
Height	35 mm
Cables included	SAY
Batteries included	Yes
Software provided	Norton Internet Security
Warranty duration	3 years
