Bring your walls to life
For the most engaging and creative visual experiences, the 55” Multisync® UN552VS video wall display offers better image quality, easier installation and a reliable longer-lasting performance.

Installation and operation becomes so simple as powerful calibration capabilities provide compelling picture performance throughout the display’s entire lifetime. Tune picture attributes according to your specific application needs and create a single image across multiple displays. With a combined adjoining bezel of just 0.88mm, the holistic video wall experience offers an expansive digital canvas with barely noticeable interruption. The 500cd/m² display brightness and an anti-glare surface delivers best readability with no annoying reflections under common light conditions.

Attracting shoppers in retail malls, entertaining museum-goers or presenting menu choices, these large modular displays, in different shapes and formations, get your content noticed.

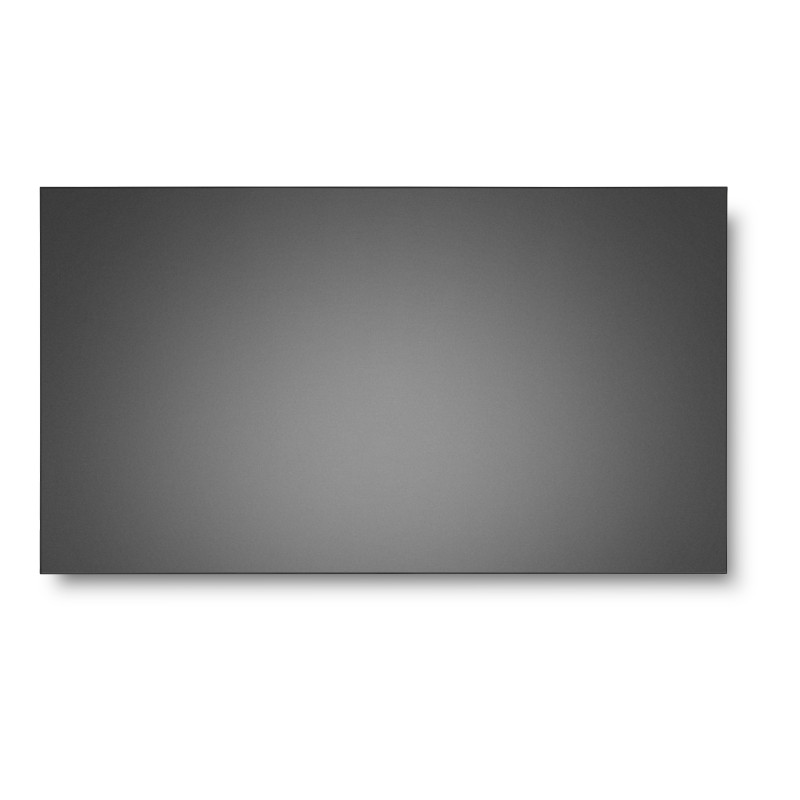

NEC UN552VS. Display diagonal: 55", Display resolution: 1920 x 1080 pixels, Display technology: LCD, Display brightness: 500 cd/m², HD type: Full HD, Operating hours (hours/days): 24/7. Product color: Black

Display technology	LCD
Pixel pitch	0.0248 x 0.0248" (0.63 x 0.63 mm)
Display brightness	500 cd/m²
Display diagonal	55"
Display resolution	1920 x 1080 pixels
HD type	Full HD
Active display area (W x H)	47.6 x 26.8" (1209.6 x 680.3 mm)
Contrast ratio (typical)	1700:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Operating hours (hours/days)	24/7
Placement supported	Indoor
Orientation	Landscape/Portrait
Bezel width (side)	0.0173" (0.44 mm)
Bezel width (top)	0.0173" (0.44 mm)
Bezel width (bottom)	0.0173" (0.44 mm)
VESA mounting	Yes
Panel mounting interface	400 x 400 mm
Product color	Black
Purpose	Universal
HDMI ports quantity	3
HDMI input ports quantity	2
HDMI output ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
VGA (D-Sub) input ports	1
DisplayPorts quantity	3
Wi-Fi	No
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
USB port	Yes
USB ports quantity	5
HDCP	Yes
Power consumption (typical)	225 W
Power consumption (standby)	0.5 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Compliance certificates	RoHS
Harmonized System (HS) code	85285210
Certification	BSMI; CE; EAC; EMC B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Width	47.7" (1210.5 mm)
Depth	3.88" (98.6 mm)
Height	26.8" (681.2 mm)
Weight	56.9 lbs (25.8 kg)
Cables included	AC, DisplayPort, HDMI
