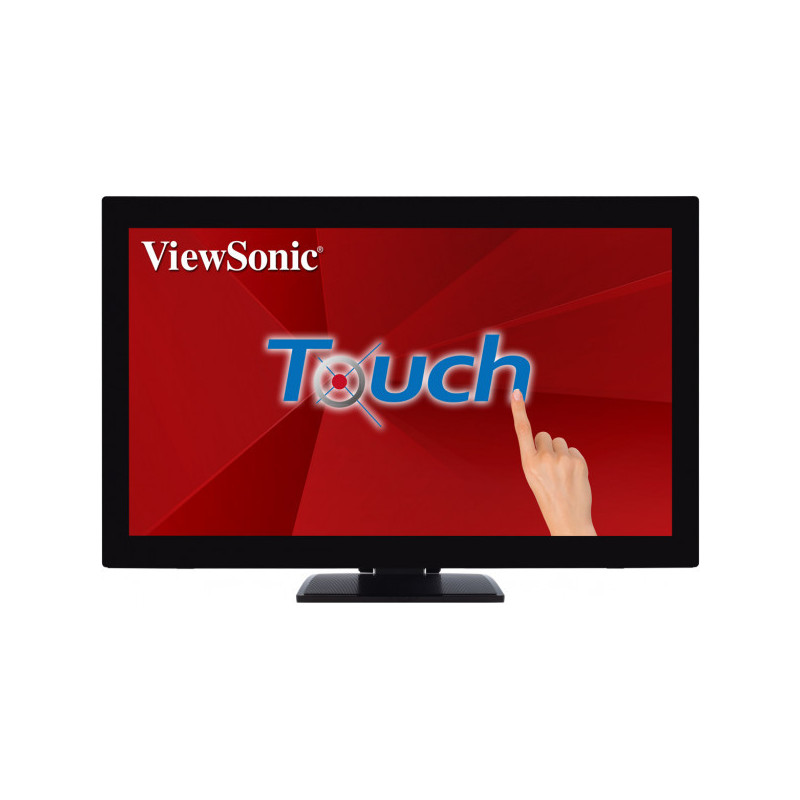

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.

10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.

SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.

VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.

CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

Viewsonic TD2760. Display diagonal: 27", Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product color: Black

Display diagonal	27"
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	VA
Response time	6 ms
Screen shape	Flat
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
LED backlight	Yes
Backlight type	LED
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	300 cd/m²
Anti-glare screen	Yes
Aspect ratio	16:9
Contrast ratio (dynamic)	50000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.0122 x 0.0122" (0.311 x 0.311 mm)
Horizontal scan range	15 - 90 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	23.5" (59.8 cm)
Viewable size, vertical	13.2" (33.6 cm)
Display diagonal (metric)	27" (68.6 cm)
Surface hardness	6H
Separate H/V sync	Yes
NVIDIA G-SYNC	No
AMD FreeSync	No
Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	4 W
Built-in microphone	No
Product color	Black
Glass thickness	0.0740" (1.88 mm)
Built-in USB hub	Yes
HDMI	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Audio input	1
Audio output	1
HDCP	Yes
RS-232 ports	1
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Tilt angle range	-4 - 90°
On Screen Display (OSD)	Yes
Number of OSD languages	14
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	19 kWh
Power consumption (typical)	26 W
Power consumption (standby)	0.3 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	AC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Width (with stand)	26" (660 mm)
Depth (with stand)	9.41" (239 mm)
Height (with stand)	17.4" (443 mm)
Weight (with stand)	17.4 lbs (7.9 kg)
Width (without stand)	26" (660 mm)
Depth (without stand)	2.28" (58 mm)
Height (without stand)	16.1" (410 mm)
Weight (without stand)	12.1 lbs (5.5 kg)
Package width	29.6" (753 mm)
Package depth	8.03" (204 mm)
Package height	20.7" (525 mm)
Package weight	22.5 lbs (10.2 kg)
Quick start guide	Yes
Connection to PC	Yes
Accessories included	Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable
Mean time between failures (MTBF)	30000 h
Certification	MX-CoC, Mexico Energy, CE, CE EMC, CB
Harmonized System (HS) code	85285210
European Product Registry for Energy Labelling (EPREL) code	384384
