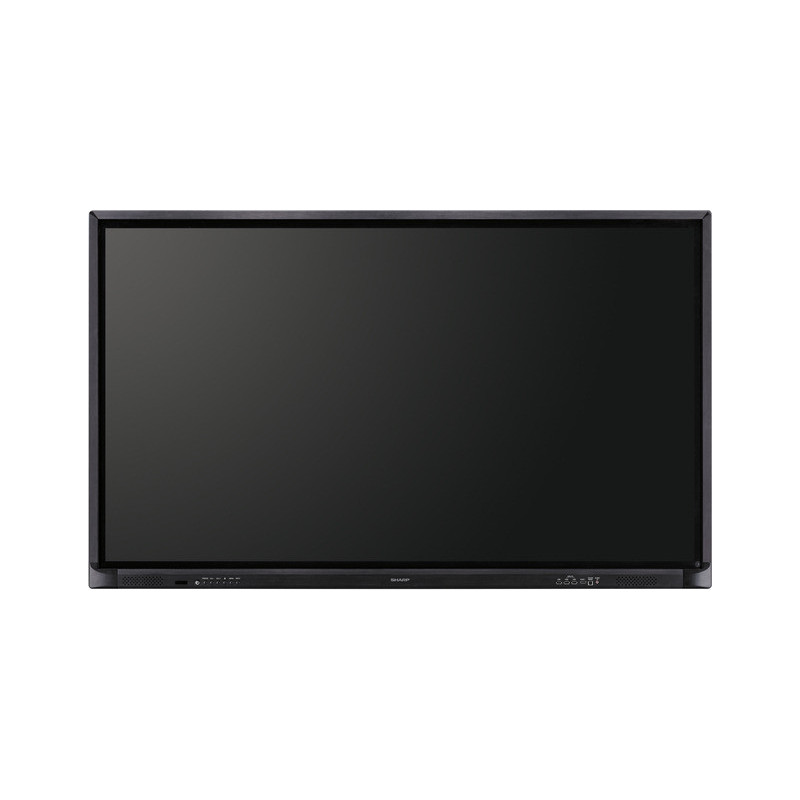

PN-70HC1E

Sharp's 4K BIG PAD PN-70HC1E has been developed for classrooms or higher education campuses as well as meeting rooms and workspaces. Building on Sharp's expertise in advanced smart interactive display solutions, the PN-70HC1E offers flexible and fast application access with its integrated SoC Controller PC functionality. Offering the latest on-screen collaboration capabilities with affordable price performance, Sharp’s latest 70” BIG PAD interactive display can help you enhance communication and create the best environment for effective collaboration. The generous 4K UHD 70" touchscreen display lets you create and collaborate with ease and precision, whether in a classroom or a meeting room. Everyone is engaged and stays focused, so you'll never have to worry about trying to keep their attention. Powerful, flexible and cost-effective, the latest Sharp 4K BIG PAD PN-70HC1E provides an outstanding platform with easy connectivity via VGA and HDMI inputs to either boost collaboration, enhance audience impact, or simply increase lesson effectiveness. The main presenter or teacher is always in control because of the comprehensive bezel buttons available, such as Freeze Frame, or security display Lock, and Input select for the management of the various content sources. The acclaimed, smart and intuitive SHARP Pen Software works with the bundled passive stylus to open up new ways for brainstorming, sharing ideas and enhancing the collaboration experience. Finally, further powerful application and feature enhancement opportunities exist via the OPS slot extension.

Sharp PN-70HC1E. Product design: Digital signage flat panel. Display diagonal: 70", Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD, Touchscreen. Product color: Black

Display diagonal	70"
Display technology	LCD
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
LED backlighting type	Edge-LED
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	4000:1
Display number of colors	10.7 billion colors
Display diagonal (metric)	69.5" (176.6 cm)
HDMI ports quantity	3
USB port	Yes
VGA (D-Sub) input ports	1
USB ports quantity	1
PC Audio in	Yes
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W
Product design	Digital signage flat panel
Product color	Black
Placement supported	Indoor/outdoor
VESA mounting	Yes
Orientation	Horizontal/Vertical
Panel mounting interface	600 x 400 mm
Bezel width (bottom)	3.15" (8 cm)
Bezel width (side)	1.77" (4.5 cm)
Bezel width (top)	1.77" (4.5 cm)
Purpose	Corporate
Power consumption (typical)	400 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Heat dissipation	1365 BTU/h
Windows operating systems supported	Windows 10
Width	64.1" (1629 mm)
Depth	3.94" (100 mm)
Height	39" (990 mm)
Weight	119 lbs (54 kg)
Stylus pen	Yes
Number of stylus pens	1
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Certification	CB, CE
Mini VGA (D-Sub) input ports	2
