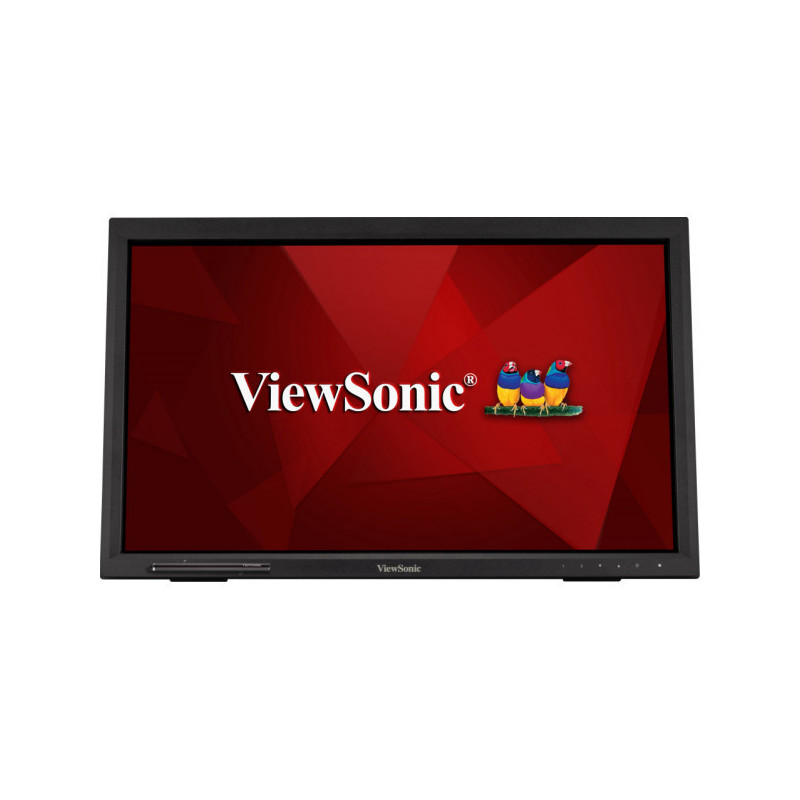

The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

Viewsonic TD2223. Display diagonal: 21.5", Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). Built-in USB hub. Product color: Black

Display diagonal	21.5"
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	TN
Response time	5 ms
Screen shape	Flat
Contrast ratio (typical)	1000:1
Maximum refresh rate	75 Hz
Display number of colors	16.78 million colors
Touchscreen type	Multi-user
Touchscreen technology	Infrared
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	250 cd/m²
Contrast ratio (dynamic)	20000000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.00976 x 0.00976" (0.248 x 0.248 mm)
Horizontal scan range	24 - 82 kHz
Vertical scan range	50 - 75 Hz
NVIDIA G-SYNC	No
AMD FreeSync	No
Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	4 W
Built-in microphone	No
Product color	Black
Glass thickness	0.0787" (2 mm)
Built-in USB hub	Yes
HDMI	Yes
Headphone out	Yes
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
Headphone outputs	1
Microphone in	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Cable lock slot type	Kensington
Tilt adjustment	Yes
Tilt angle range	22 - 38°
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	14 kWh
Power consumption (typical)	12.5 W
Power consumption (standby)	0.5 W
Power consumption (max)	14 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	AC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Width (with stand)	20.5" (521 mm)
Depth (with stand)	3.98" (101 mm)
Height (with stand)	13.1" (334 mm)
Weight (with stand)	9.92 lbs (4.5 kg)
Width (without stand)	20.5" (521 mm)
Depth (without stand)	2.4" (61 mm)
Height (without stand)	12.5" (318 mm)
Weight (without stand)	8.6 lbs (3.9 kg)
Package width	22.8" (580 mm)
Package depth	6.46" (164 mm)
Package height	15.9" (405 mm)
Package weight	13.2 lbs (6 kg)
Stand included	Yes
Cables included	AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B
Sustainability certificates	ENERGY STAR
Compliance certificates	REACH, RoHS
Certification	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
Harmonized System (HS) code	85285210
European Product Registry for Energy Labelling (EPREL) code	368718
