10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

10-point Multi-touch

Advanced ergonomic stand design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.

Ergonomic stand

Versatile Connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.

Cross-platform compatibility
Cross compatibility with a wide range of operating systems including Windows 10 and certain Linux versions.
Supports Windows 7/8/10, Linux Kernel 4.X/3.X

Windows 10, Linux

Durable, Scratch-resistant Screen
This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.

7H Hardness

Dual integrated speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

Dual integrated speakers

Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

Blue light filter Flicker Free

VESA-compatible mount
Conveniently mount the monitor to your liking by utilizing VESA compatible mount design.

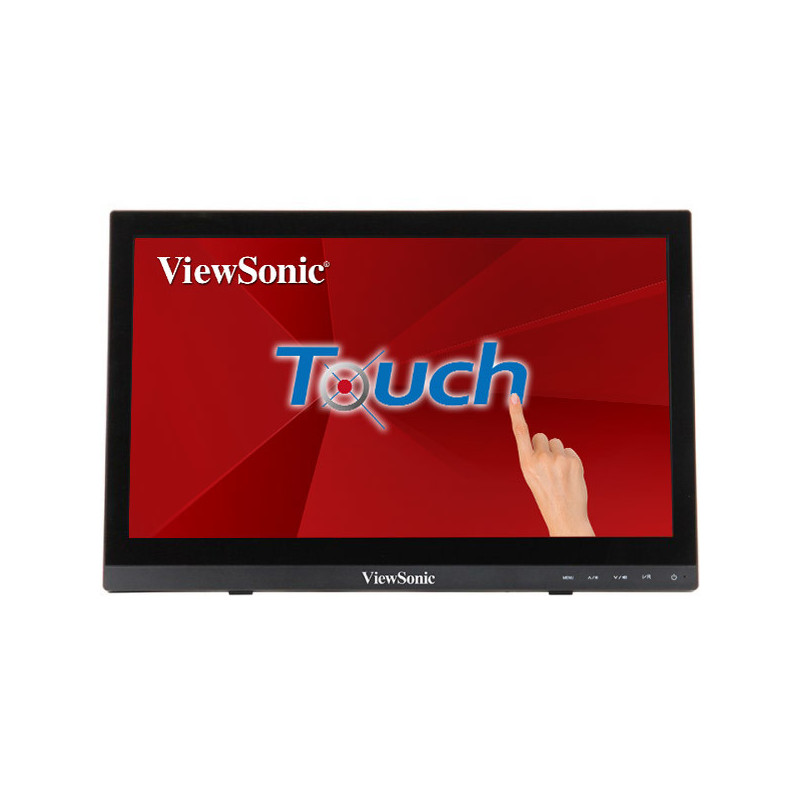

Viewsonic TD1630-3. Display diagonal: 15.6", Display resolution: 1366 x 768 pixels, HD type: HD, Display technology: LCD, Response time: 12 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 90°, Viewing angle, vertical: 60°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product color: Black

Display diagonal	15.6"
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	Yes
HD type	HD
Panel type	TN
Response time	12 ms
Screen shape	Flat
Contrast ratio (typical)	500:1
Maximum refresh rate	60 Hz
Display number of colors	262144 colors
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	220 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768
Contrast ratio (dynamic)	10000000:1
Viewing angle, horizontal	90°
Viewing angle, vertical	60°
Pixel pitch	0.00992 x 0.00992" (0.252 x 0.252 mm)
Horizontal scan range	30 - 61 kHz
Vertical scan range	56 - 75 Hz
Display diagonal (metric)	15.6" (39.6 cm)
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Mac operating systems supported	Yes
Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	2 W
Built-in microphone	No
Product color	Black
Built-in USB hub	Yes
HDMI	Yes
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
Audio input	1
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Wall mountable	Yes
Tilt adjustment	Yes
Tilt angle range	15 - 50°
Energy efficiency class (SDR)	B
Energy consumption (SDR) per 1000 hours	6 kWh
Power consumption (typical)	5.5 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	AC
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	5 - 90%
Width (with stand)	14.9" (379.2 mm)
Depth (with stand)	1.46" (37.1 mm)
Height (with stand)	9.73" (247.1 mm)
Weight (with stand)	2.91 lbs (1.32 kg)
Package width	17.8" (453 mm)
Package depth	3.39" (86 mm)
Package height	15.3" (389 mm)
Package weight	5.51 lbs (2.5 kg)
Cables included	AC, Audio (3.5mm), USB, VGA
Sustainability certificates	ErP
Display viewable area (HxV)	13.6 x 7.62" (344.2 x 193.5 mm)
Compliance certificates	CE, REACH, RoHS
Certification	CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
Harmonized System (HS) code	85285210
European Product Registry for Energy Labelling (EPREL) code	391332
