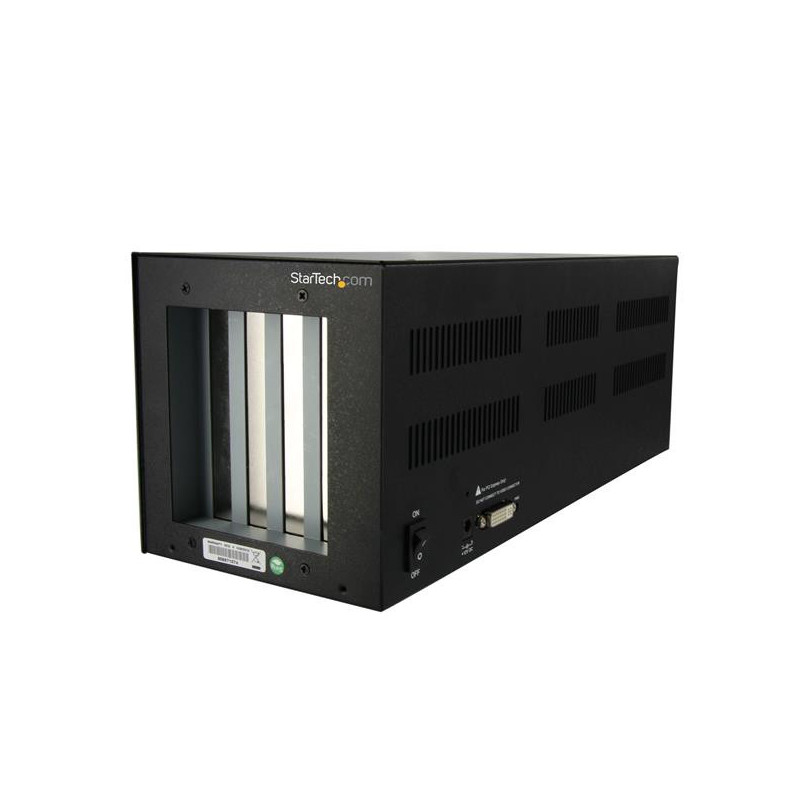

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.

The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket

StarTech.com PEX2PCIE4L. Certification: ROHS, CE, FCC. Output voltage: 12 V, Output current: 3 A. Width: 5.39" (137 mm), Depth: 15" (382 mm), Height: 5.63" (143 mm). Cables included: AC, DVI, Package width: 8.19" (208 mm), Package depth: 17.2" (436 mm). Data transfer rate: 250 Mbit/s, Cable length: 35.4" (0.9 m)

Certification	ROHS, CE, FCC
Output voltage	12 V
Output current	3 A
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Width	5.39" (137 mm)
Depth	15" (382 mm)
Height	5.63" (143 mm)
Weight	4.41 lbs (2 kg)
Cables included	AC, DVI
Manual	Yes
Package width	8.19" (208 mm)
Package depth	17.2" (436 mm)
Package height	10" (254 mm)
Package weight	4.63 lbs (2.1 kg)
Harmonized System (HS) code	84719000
Data transfer rate	250 Mbit/s
Ports quantity	4
Cable length	35.4" (0.9 m)
