Agile UST laser display
Project your vision, with an affordable, large screen display up to 150" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.

The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.

Versatile wired and wireless connectivity options, including screen mirroring via Miracast, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.

With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost.

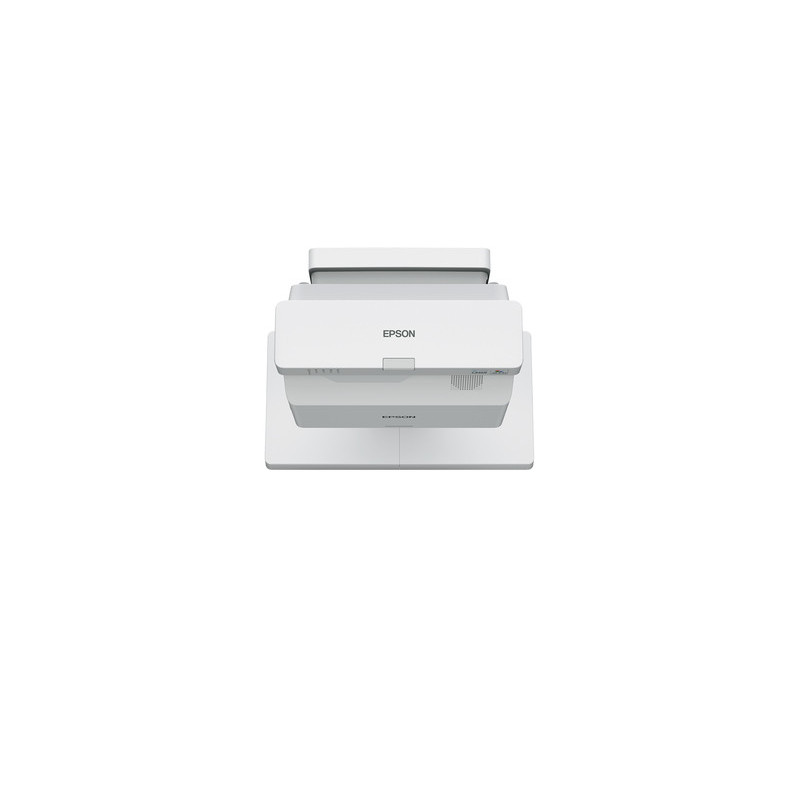

Epson EB-760W. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser/LED hybrid, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 0.146" (3.7 mm), Zoom ratio: 1.35:1. Video color modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C

Projector brightness	4100 ANSI lumens
Projection technology	3LCD
Projector native resolution	1080p (1920x1080)
Contrast ratio (typical)	2500000:1
Native aspect ratio	16:10
Screen size compatibility	60 - 150"
Supported aspect ratios	16:10
Number of colors	1.07 billion colors
Projector brightness (economic mode)	2800 ANSI lumens
Vertical scan range	100 - 120 Hz
Keystone correction, horizontal	-3 - 3°
Keystone correction, vertical	-3 - 3°
Heat dissipation	895 BTU/h
Light source type	Laser/LED hybrid
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Focus	Manual
Fixed focal length	0.146" (3.7 mm)
F-number (relative aperture)	1.6
Zoom capability	Yes
Zoom ratio	1.35:1
Throw ratio	0.27 - 0.37:1
Full HD	Yes
3D	No
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
Composite video in	1
Component video (YPbPr/YCbCr) in	0
DVI port	No
Audio (L/R) in	3
Serial interface type	RS-232C
USB 2.0 ports quantity	3
USB 2.0 Type-A ports quantity	2
USB 2.0 Type-B ports quantity	1
Audio (L/R) out	1
Microphone in	Yes
Consumer Electronics Control (CEC) support	Yes
Audio Return Channel (ARC)	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Yes
Card reader integrated	No
Noise level	37 dB
Noise level (economic mode)	27 dB
On Screen Display (OSD)	Yes
Screen mirroring	Yes
Built-in speaker(s)	Yes
RMS rated power	16 W
Product type	Ultra short throw projector
Market positioning	Presentation
Product color	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Built-in display	No
Power source	AC
Power consumption (typical)	197 W
Power consumption (standby)	0.5 W
Power consumption (max)	263 W
Power consumption (PowerSave)	199 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight	13 lbs (5.9 kg)
Handheld remote control	Yes
Batteries included	Yes
Cables included	AC
Manual	Yes
Warranty period	5 year(s)
