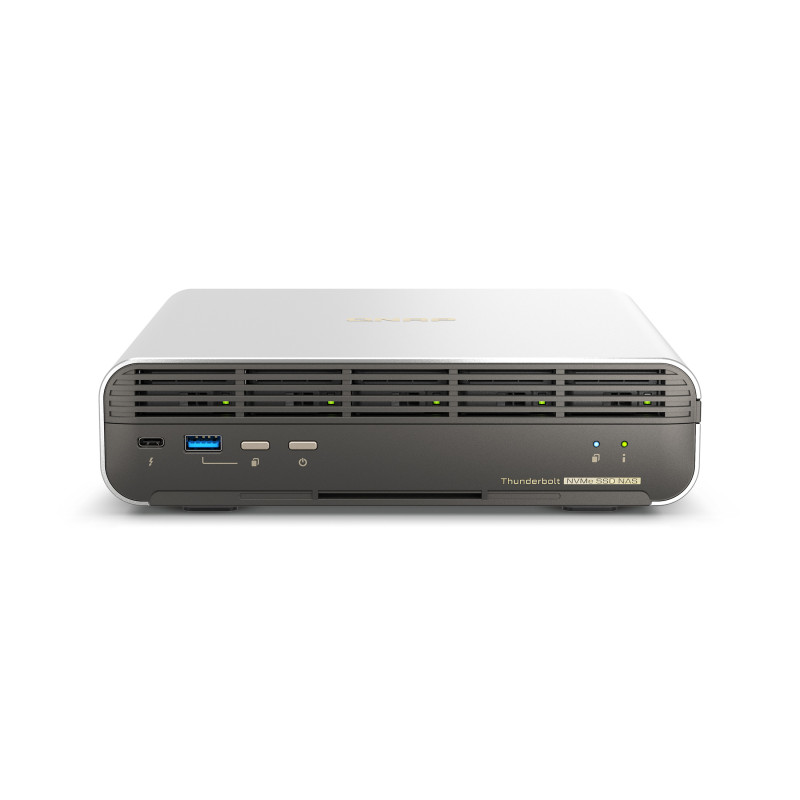

Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt™ 4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel® Core™ performance required by video production, allowing creators using Mac® or Windows® to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level. The TBS-h574TX runs the ZFS-based QuTS hero operating system that ensures data integrity. You can also switch to QTS operating system based on your needs.

Ultra-fast RAW file editing

With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.

Stay agile for ongoing projects

Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.

Thunderbolt™ 4 for faster direct connections

Two Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.

Hybrid-architecture CPU for multitasking

The 13th Gen Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.

2.5GbE and 10GbE as standard

2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.

Faster USB transfer

Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.

All-flash NASbook supporting E1.S/M.2 NVMe SSDs – a perfect companion for video production

Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project! An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.

Enabling hot-swappable M.2 SSDs!

As a frontline video production team, there is the risk of project interruptions due to unexpected SSD failures in storage devices. The innovative TBS-h574TX makes M.2 SSDs become hot-swappable for easier drive replacement. Along with supporting automatic RAID replacement with spares (supported from QTS 5.1 / QuTS hero h5.1), if potential drive errors are detected, the system automatically moves data from the affected drive in a RAID group to a spare, before the data on the affected drive is completely corrupted. This reduces system downtime and data loss risks as it avoids RAID rebuilding.

High-performance SSDs. Effective heat dissipation.

Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.

Thunderbolt™ 4 direct connection to workstations for higher productivity

The TBS-h574TX has two Thunderbolt™ 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac® (including M1 and M2 chip models) or Windows® workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.

2.5GbE and 10GbE ports | Productive teamwork

The 2.5GbE and 10GbE ports can be used with a network switch to add more connected devices to the TBS-h574TX for collaboration, significantly reducing file transfer times across devices.

USB 3.2 Gen 2 ports | Faster file import/export

Creators and editors can easily import materials from external storage devices to the TBS-h574TX via two USB 3.2 Gen 2 (10Gbps) ports and one USB 2.0 port during pre-/post-production.

USB ports | Easier storage expansion

The TBS-h574TX capacity is scalable by connecting QNAP USB DAS TR-004 or USB JBOD TL-D800C to archive massive number of video files for ever-growing storage and backup needs.

Compact, aesthetic, yet unmatched performance

The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving – smaller than A4 paper and with only 2.54 liters in volume – ideal for small-scale studios or video production teams looking for a portable solution.

Ultimate visual experience with real-time video transcoding and 4K HDMI™ output

The TBS-h574TX features built-in Intel® Graphics that accelerates video transcoding and graphical computing for converting videos to different formats smoothly. You can also display videos from the TBS-h574TX to a large screen using HDMI™ (4K @30Hz) for capturing details and clearer quality.

Manage your video projects flexibly with myQNAPcloud Storage

Elevate your video production with the compact and powerful TBS-h574TX. During pre-production, you can save large RAW files (hot data) and handle video transcoding on the TBS-h574TX. In post-production you can store small files (cold data) to myQNAPcloud Storage for file archiving and backup, making it easier to remotely access, synchronize, and share files with cross-site team members.

Build the best music server with Roon

Designed for music lovers, Roon Server identifies your entire music library stored on the TBS-h574TX, and consolidates it into Roon’s interconnected digital library. Experiencing smooth music streaming service, you just need to download Roon Server app from QNAP App Center and enable Roon music library on SSD storage devices with simple setting.


QNAP TBS-H574TX-I5-16G. Type: NAS, Device class: Small & Medium Business. Processor family: Intel® Core™ i5, Processor model: i5-1340PE. Internal memory: 16 GB

Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive interface	M.2
Hot-swap drive bays	Yes
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-1340PE
Processor boost frequency	4.5 GHz
Processor cores	12
Processor threads	16
Processor cache	12 MB
On-board graphics card model	Intel Iris Xe Graphics
Internal memory	16 GB
Flash memory	5000 MB
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Jumbo frames support	Yes
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	1.4b
Thunderbolt ports quantity	2
Number of fans	3 fan(s)
LED indicators	Status, USB
Type	NAS
Device class	Small & Medium Business
Buzzer	Yes
Reset button	Yes
Power supply unit (PSU) capacity	120 W
Power consumption (typical)	46 W
Width	8.46" (215 mm)
Depth	7.83" (199 mm)
Height	2.36" (60 mm)
Weight	4.94 lbs (2.24 kg)
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
