Tough. Ready. Scalable
Purpose-built for Connected-Home, SOHO
and Small-to-Medium Business NAS Environments

IronWolf™ is designed for consumer and commercial NAS. Delivering Tough, Ready and Scalable 24x7 performance in multibay, networked environments.

Optimised for NAS with AgileArray™ AgileArray enables Dual-Plane Balancing and
Time-Limited Error Recovery to deliver best-in-class RAID performance in multi-bay
systems.

Always On, Always Accessible IronWolf drives are designed for 24x7 usage, allowing
users to access their data any time, anywhere.

All-CMR Portfolio All IronWolf drives utilize Conventional Magnetic Recording (CMR)
technology for consistent, best-in-class NAS performance.

Up to 12 TB Broad range of capacity options to deliver scalable and cost-efficient
storage solutions.

Built Tough IronWolf drives are rated for 180 TB/year workload, allowing consumer and
commercial NAS users to seamlessly store and work with large amounts of networked
data.

Superior Reliability and Dependability IronWolf drives are rated for 1M hours MTBF and
include a 3-year limited warranty for hassle-free data storage and best-in-class total cost
of ownership (TCO)

Rotational Vibration (RV) sensors. Built-in RV sensors for vibration tolerance and
consistent performance in multi-bay systems.

IronWolf Health Management (IHM) Actively protect your NAS data with Prevention,
Intervention, and Recovery recommendations to ensure peak system health.

Peace of mind with Data Recovery IronWolf drives include 3 years of complimentary
Rescue Data Recovery Services - in-house secure facilities, with an industry-leading
recovery rate of 95% - so you do not have to incur high recovery costs in the event of
accidental data corruption or drive damage.

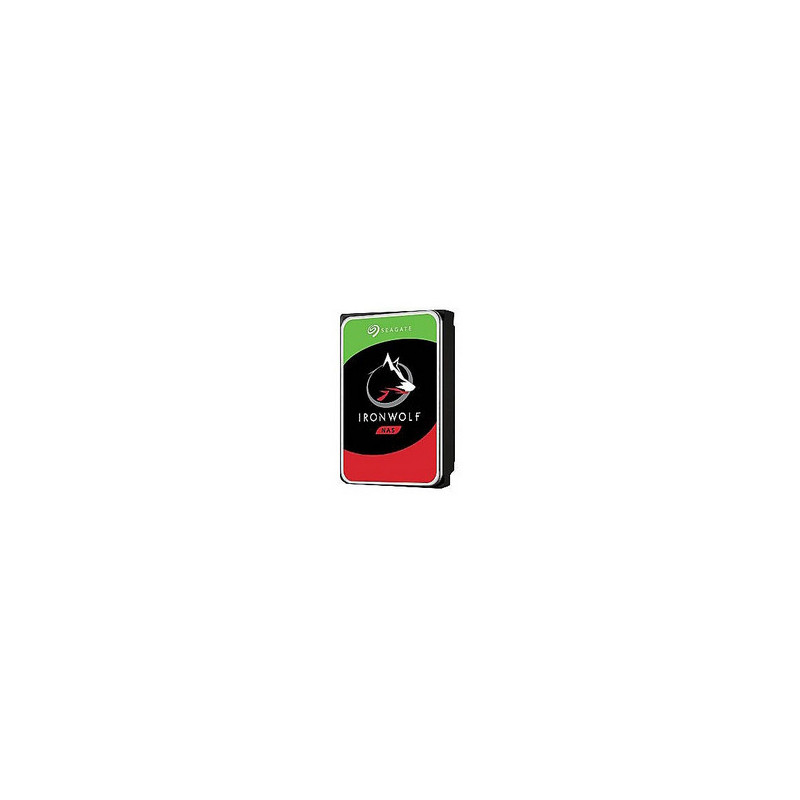

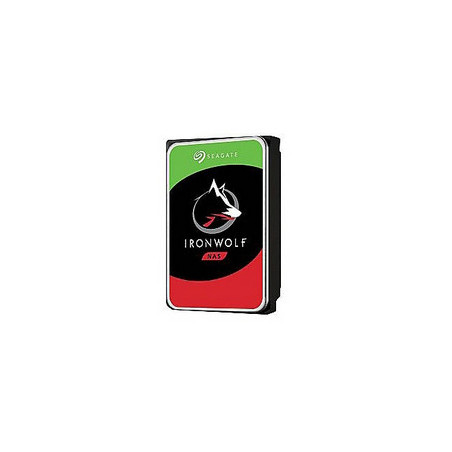

Seagate IronWolf ST1000VN008. HDD capacity: 1 TB, HDD speed: 5400 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III

HDD capacity	1 TB
HDD speed	5400 RPM
HDD size	3.5"
Interface	Serial ATA III
Type	HDD
Component for	NAS
Storage drive buffer size	256 MB
HDD interface transfer rate	6 Gbit/s
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^14 bits read
Error Recovery Control (ERC)	Yes
Rotational Vibration (RV) sensors	Yes
24/7 operation	Yes
Start/stop cycles	600000
Noise level (idle)	21 dB
Mean time between failures (MTBF)	1000000 h
Power consumption (typical)	3.1 W
Power consumption (standby)	0.25 W
Power consumption (idle)	2.8 W
Operating voltage	5 / 12 V
Start-up current	1.8 A
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	80 G
Non-operating shock	300 G
Width	4.01" (101.8 mm)
Height	0.795" (20.2 mm)
Depth	5.79" (147 mm)
Weight	14.6 oz (415 g)
