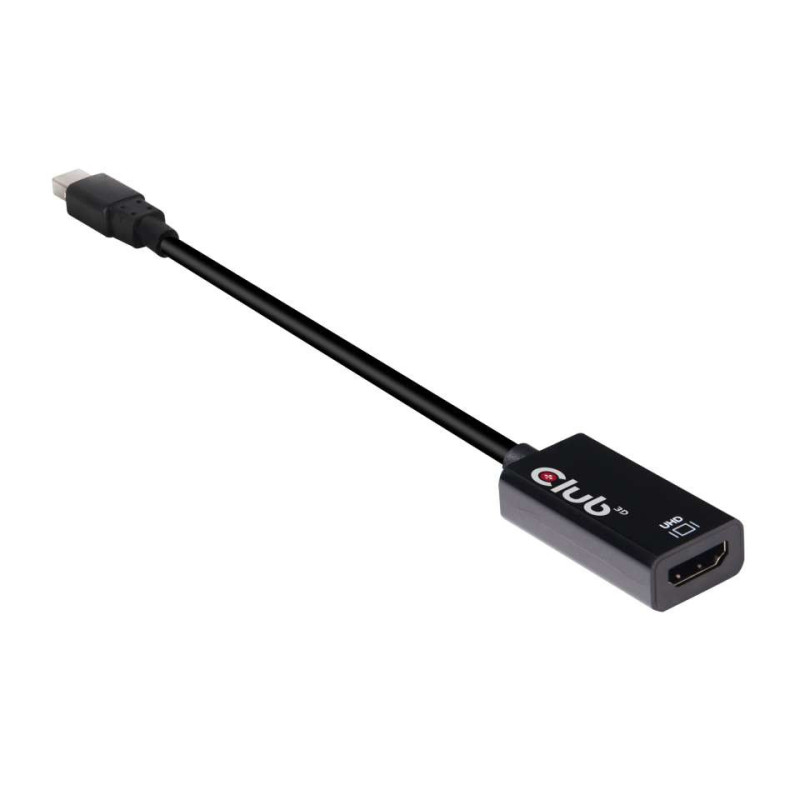

CAC-1180 - The Club3D Mini DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.

Resolution Support
The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b

CLUB3D Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter. Connector 1: Min iDisplayPort 1.4, Connector 2: HDMI 2.0b, Connector contacts plating: Copper. Product color: Black

Connector 1	Min iDisplayPort 1.4
Connector 2	HDMI 2.0b
DisplayPort version	1.4
Connector contacts plating	Copper
Product color	Black
Data transfer rate	18 Gbit/s
USB required	No
Maximum resolution	4096 x 2160 pixels
Maximum resolution (HDMI)	4096 x 2160 pixels
Converter type	Active video converter
Maximum refresh rate	60 Hz
Plug and Play	Yes
Compatible operating systems	Windows 10, 8.1 Mac OS Sierra, High Sierra
USB powered	No
Compliance certificates	RoHS
Certification	ROHS, FCC, CE EMI, WEEE
Width	0.787" (20 mm)
Depth	11, 184
Weight	1.06 oz (30 g)
Quantity per pack	1 pc(s)
Package width	2.36" (60 mm)
Package depth	1.38" (35 mm)
Package height	7.17" (182 mm)
Package weight	0.353 oz (10 g)
Cable color	Black
Country of origin	China
Quantity per master (outer) case	10 pc(s)
