GIGABYTE
CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE's custom-designed cooling system delivers effective heat dissipation capacity, featuring pure copper heat pipes that make direct contact with the GPU. This facilitates enhanced heat transfer to the heatsink, allowing for higher performance at lower temperatures.

LOW PROFILE DESIGN
At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.

AMPLE CONNECTIVITY
Enjoy versatile display options with two DisplayPort and two HDMI ports, supporting up to 4 displays simultaneously.

ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

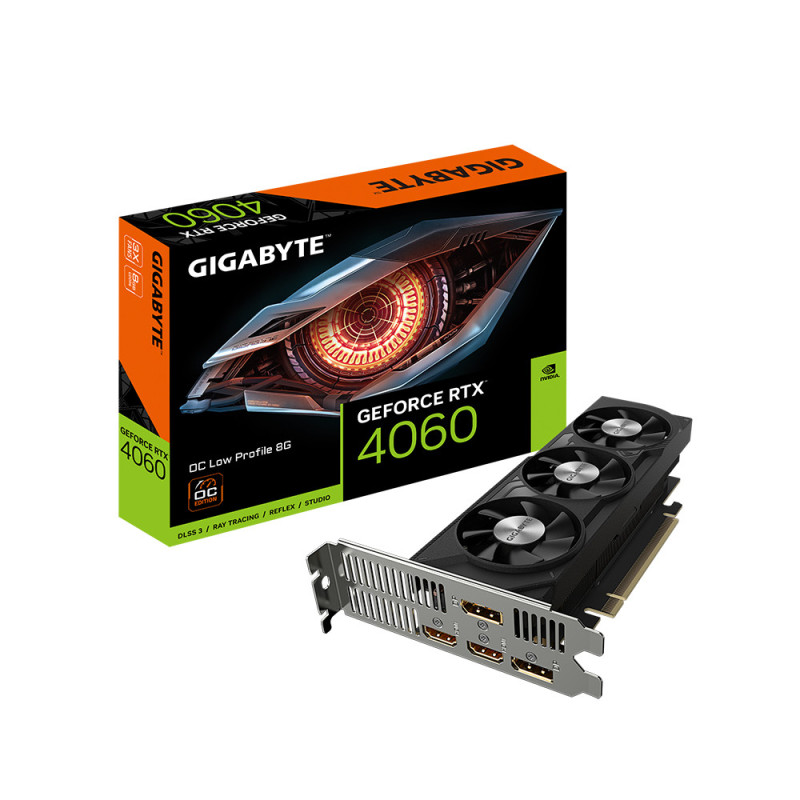

GIGABYTE GeForce RTX 4060 OC Low Profile 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060, Processor frequency: 2475 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)

Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4060
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
Processor frequency	2475 MHz
Parallel processing technology support	Not supported
CUDA cores	3072
Maximum displays per videocard	4
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	128 bit
Memory bandwidth (max)	17 GB/s
Interface type	PCI Express 4.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
Thunderbolt 3 ports quantity	0
Mini HDMI ports quantity	0
HDMI version	2.1a
Mini DisplayPorts quantity	0
DisplayPort version	1.4a
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
HDCP	Yes
Cooling type	Active
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Product color	Black
Minimum system power supply	450 W
Supplementary power connectors	1x 8-pin
Length	7.28" (185 mm)
Depth	1.57" (40 mm)
Height	2.72" (69 mm)
Package type	Box
Quick installation guide	Yes
