WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

AMD Fluid Motion Frames
Cutting-edge frame generation technology with increased frame rates and smooth movement for game-winning performance.

AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.

AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.

AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.

AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.

AV1 Encoding & Video Upscaling
Improved video quality enhancements and encoding for even better fidelity and clarity in videos.

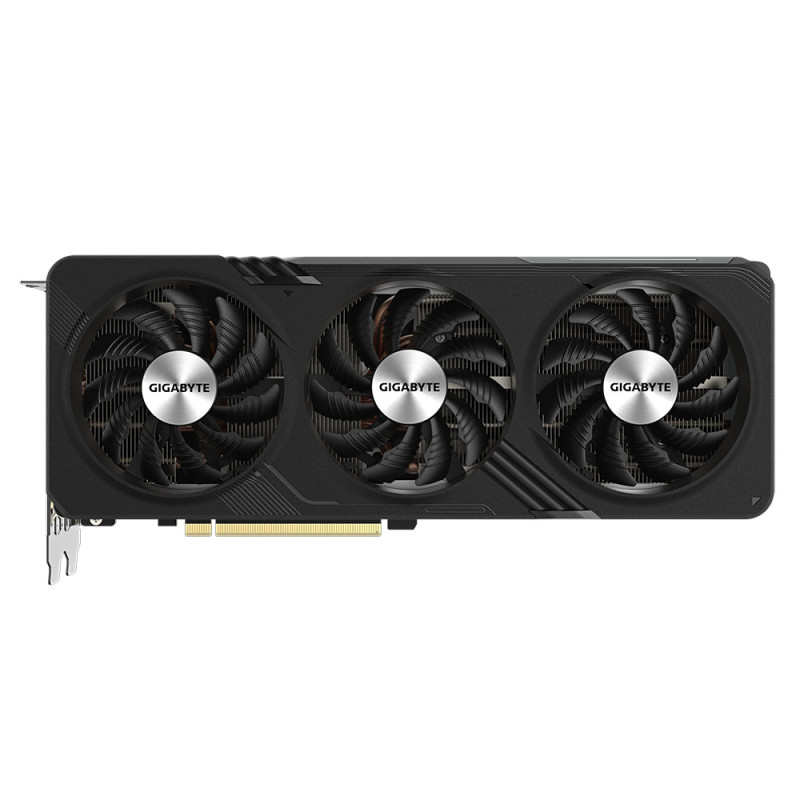

GIGABYTE GAMING Radeon RX 7600 XT OC 16G. Graphics processor family: AMD, Graphics processor: Radeon RX 7600 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination color: Multi

Graphics processor family	AMD
Graphics processor	Radeon RX 7600 XT
Maximum resolution	7680 x 4320 pixels
CUDA	No
Parallel processing technology support	Not supported
Processor boost clock speed	2810 MHz
Stream processors	2048
Maximum displays per videocard	4
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR6
Memory bus	128 bit
Number of pipelines	5
Data transfer rate	18 Gbit/s
Interface type	PCI Express 4.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
Thunderbolt 3 ports quantity	0
Mini HDMI ports quantity	0
HDMI version	2.1a
Mini DisplayPorts quantity	0
DisplayPort version	2.1
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
AMD FreeSync	Yes
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Fan diameter	3.15" (8 cm)
Form factor	Full-Height/Full-Length (FH/FL)
Bracket height	Full-Height (FH)
Illumination	Yes
Illumination color	Multi
Product color	Black
Minimum system power supply	600 W
Supplementary power connectors	2x 8-pin
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Length	11.1" (281.4 mm)
Depth	2.07" (52.6 mm)
Height	4.59" (116.6 mm)
Package type	Box
User guide	Yes
