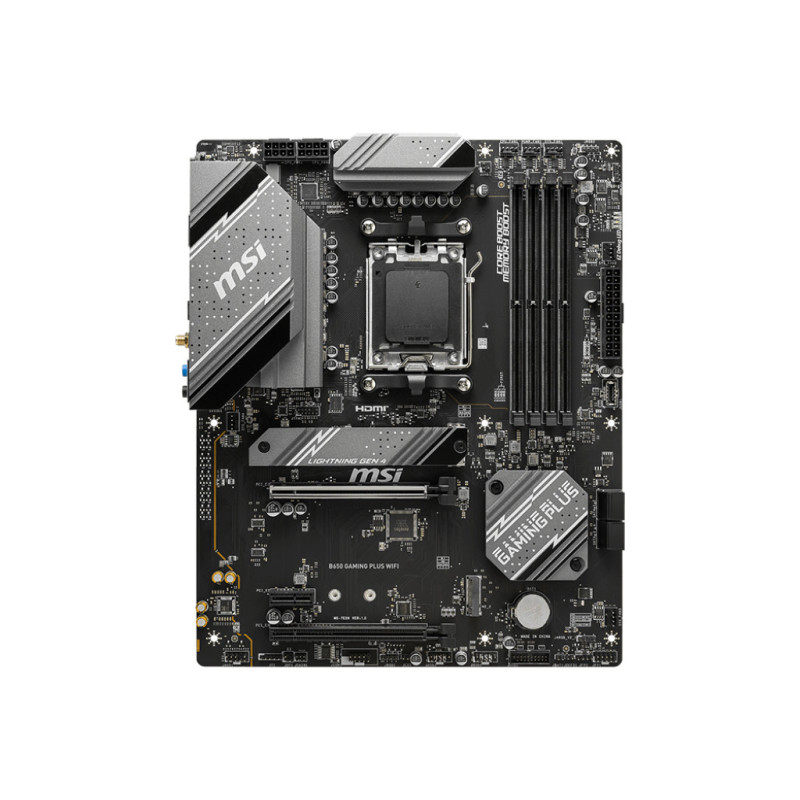

B650 GAMING PLUS WIFI
B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.




MSI B650 GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
Supported processor sockets	Socket AM5
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	192 GB
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)	6000 MHz
Supported storage drive interfaces	M.2, SATA
RAID support	Yes
RAID levels	0, 1, 10
Parallel processing technology support	Not supported
On-board graphics card	No
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
HDMI version	2.1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125B
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.3
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Product color	Black
PC health monitoring	Fan
Windows operating systems supported	Windows 11 x64
PCI Express x16 slots	2
PCI Express x16 (Gen 3.x) slots	1
Number of M.2 (M) slots	2
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
Width	9.6" (243.8 mm)
Depth	12" (304.8 mm)
mSATA ports quantity	0
