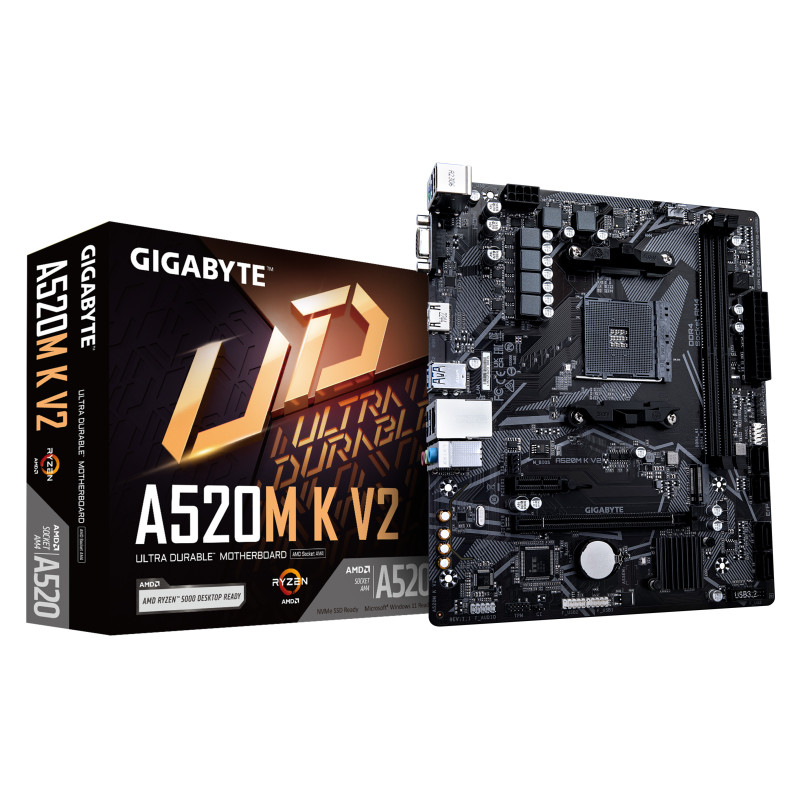

GIGABYTE A520M K V2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported processor sockets	Socket AM4
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Maximum internal memory	64 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Supported memory clock speed (max)	5100 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of storage drives supported	5
RAID support	Yes
RAID levels	0, 1, 10
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
TPM connector	Yes
12V power connector	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DVI-D ports quantity	0
PS/2 ports quantity	1
HDMI version	2.1
Headphone outputs	3
Microphone in	Yes
USB connector type	USB Type-A
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Audio output channels	7.1 channels
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x1 slots	1
PCI Express x16 slots	1
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	10.4" (265 mm)
Package depth	9.25" (235 mm)
Package height	2.05" (52 mm)
Package weight	23.8 oz (675 g)
Width	9.17" (233 mm)
Depth	7.8" (198 mm)
Height	1.38" (35 mm)
Cables included	SATA
Batteries included	Yes
Bundled software	Norton Internet Security
Warranty period	3 year(s)
