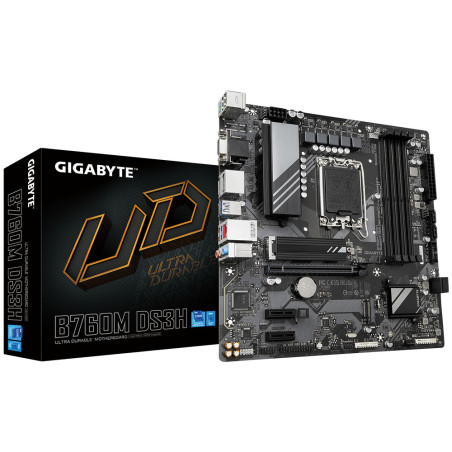

GIGABYTE B760M DS3H. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	256 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory clock speed (max)	7600 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	6
RAID support	Yes
RAID levels	0, 1, 5, 10
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Total number of SATA connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
TPM connector	Yes
Parallel connector	Yes
Serial port headers	1
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DVI-D ports quantity	0
PS/2 ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.2
Headphone outputs	3
Microphone in	Yes
USB connector type	USB Type-A, USB Type-C
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B760 Express
Audio output channels	7.1 channels
Product color	Brown
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x1 slots	2
PCI Express x16 slots	1
Number of M.2 (M) slots	2
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	10.4" (265 mm)
Package depth	10.4" (265 mm)
Package height	2.13" (54 mm)
Package weight	2.27 lbs (1.03 kg)
Width	9.61" (244 mm)
Depth	9.61" (244 mm)
Height	1.38" (35 mm)
Cables included	SATA
Bundled software	Norton Internet Security
Warranty period	3 year(s)
