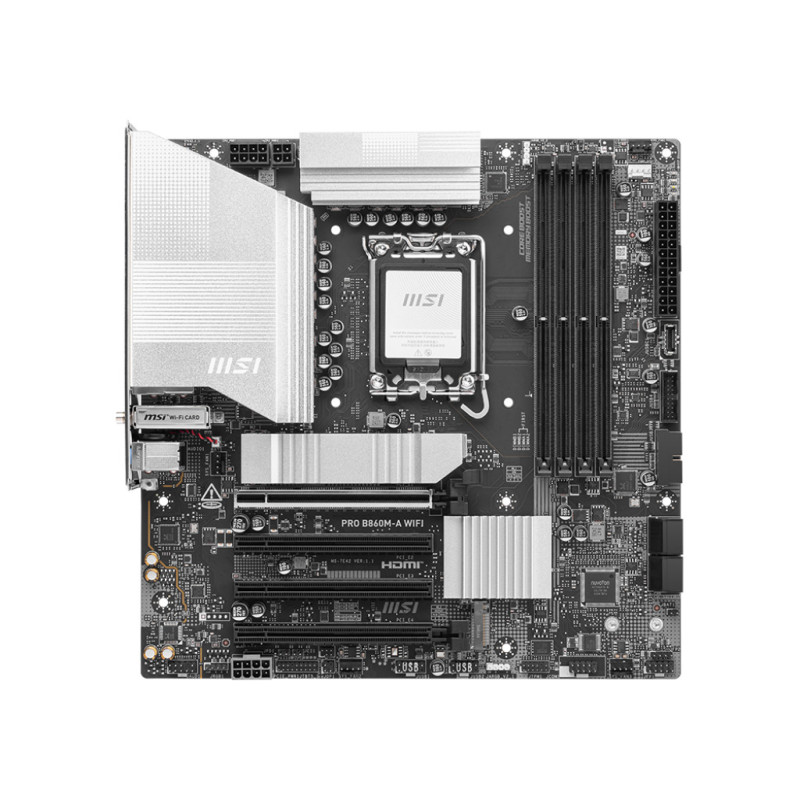

PRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.



MSI PRO B860M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Maximum internal memory supported by processor	256 GB
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	256 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800,6400,8800 MHz
Supported memory clock speed (max)	8800 MHz
Supported storage drive interfaces	M.2, Micro SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10
On-board graphics card	No
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Total number of SATA connectors	4
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of water pump connectors	1
RGB LED pin header	Yes
Number of RGB LED pin headers	3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
HDMI version	2.1
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Motherboard chipset	Intel B860
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Product color	Black
Windows operating systems supported	Windows 11 x64
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.5
System Management BIOS (SMBIOS) version	3.7
Width	9.6" (243.8 mm)
Depth	9.6" (243.8 mm)
mSATA ports quantity	0
