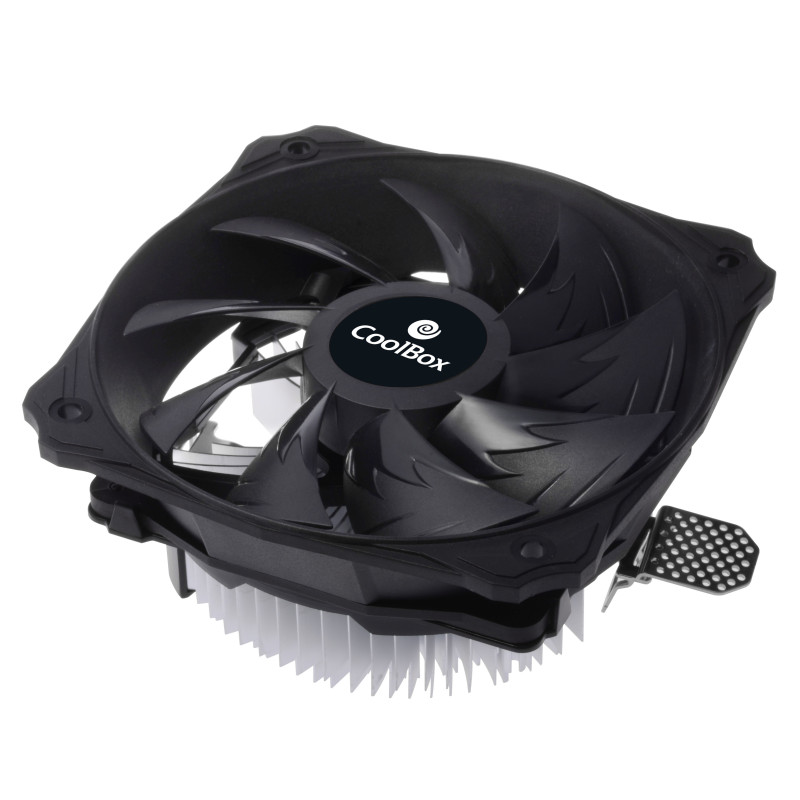

CoolBox Plannar 120. Type: Air cooler, Rotational speed (min): 800 RPM, Rotational speed (max): 1600 RPM, Minimum air pressure: 1.7 mmH2O, Maximum air pressure: 1.7 mmH2O, Bearing type: Hydraulic. Voltage: 12 V. Width: 4.72" (120 mm), Depth: 2.48" (63 mm), Height: 4.72" (120 mm). Product color: Aluminum, Black

Suitable location	Processor
Type	Air cooler
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Rotational speed (min)	800 RPM
Rotational speed (max)	1600 RPM
Noise level (low speed)	16 dB
Noise level (high speed)	20.2 dB
Maximum airflow	56 cfm
Minimum air pressure	1.7 mmH2O
Maximum air pressure	1.7 mmH2O
Pulse-width modulation (PWM) support	Yes
Bearing type	Hydraulic
Mean time between failures (MTBF)	30000 h
Product color	Aluminum, Black
Number of fans	1 fan(s)
Number of fan blades	9
Fins material	Aluminum
Fan connector	4-pin
Power consumption (typical)	1.8 W
Voltage	12 V
Maximum current	0.15 A
Thermal Design Power (TDP)	100 W
Width	4.72" (120 mm)
Depth	2.48" (63 mm)
Height	4.72" (120 mm)
Weight	8.82 oz (250 g)
Fan dimensions (W x D x H)	4.72 x 0.984 x 4.72" (120 x 25 x 120 mm)
Package type	Box
