The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply.

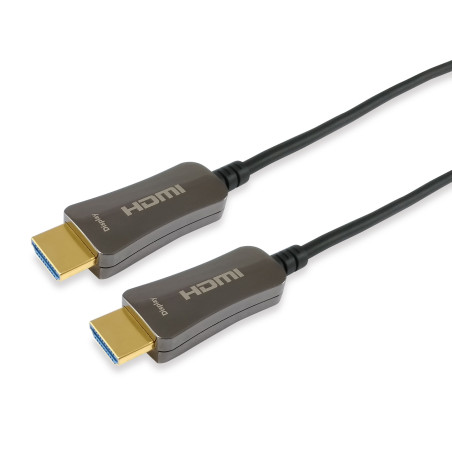

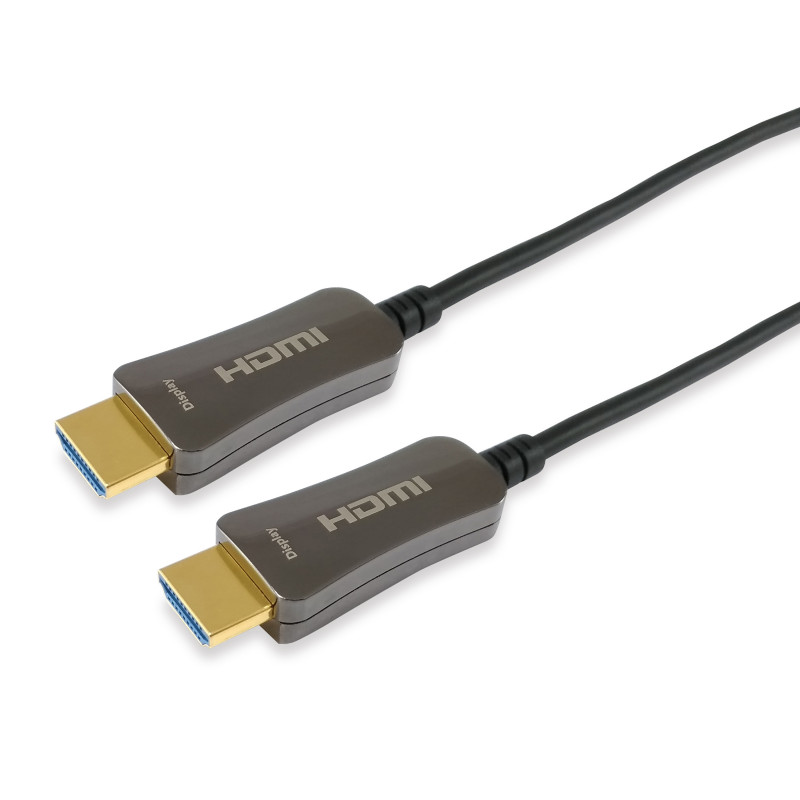

Equip 119430. Cable length: 1181.1" (30 m), Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, HDMI version: 2.0, 3D, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product color: Black

Cable length	1181.1" (30 m)
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Product color	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI version	2.0
3D	Yes
Audio Return Channel (ARC)	Yes
HDMI Ethernet channel	Yes
HDCP	Yes
HDCP version	2.0
Data transfer rate	18 Gbit/s
Cable material	Copper
Plug and Play	Yes
Cable diameter	0.189" (4.8 mm)
Quantity per pack	1 pc(s)
Package width	9.25" (235 mm)
Package depth	8.86" (225 mm)
Package height	2.91" (74 mm)
Package weight	28.9 oz (818 g)
Package type	Box
Country of origin	China
Harmonized System (HS) code	84733080
Master (outer) case width	22.8" (580 mm)
Master (outer) case length	22.8" (580 mm)
Master (outer) case height	12.2" (310 mm)
Master (outer) case weight	665.8 lbs (302 kg)
Quantity per master (outer) case	36 pc(s)
