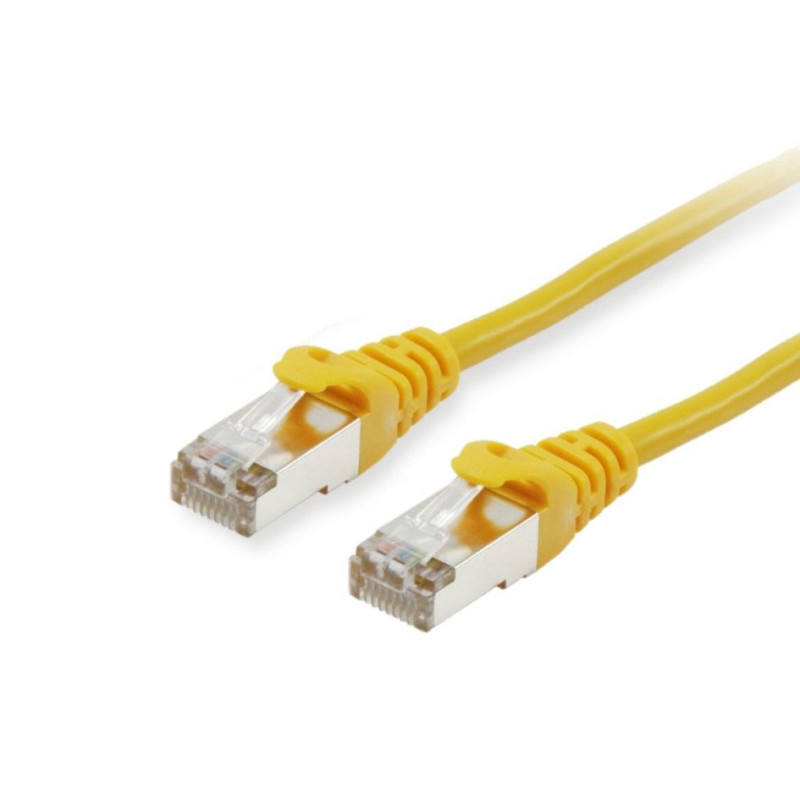

The equip® Cat.6A S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application

Equip 606308. Cable length: 393.7" (10 m), Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product color: Yellow

Cable length	393.7" (10 m)
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Product color	Yellow
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor type	Stranded
Conductor material	Copper
Cabling technology	10GBase-T
Ethernet interface type	10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Networking standards	IEEE 802.3, IEEE 802.5
AWG wire size	26/7
Data transfer rate	10000 Mbit/s
Frequency	500 MHz
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Molded cable boot	Yes
Plug and Play	Yes
Country of origin	China
Doesn't contain	Halogen
Compliance certificates	CE, REACH, RoHS
Width	0.328" (8.34 mm)
Depth	0.46" (11.7 mm)
Height	393.7" (10000 mm)
Outer diameter	0.24" (6.1 mm)
Weight	11.2 oz (317 g)
Quantity per pack	1 pc(s)
Package width	8.66" (220 mm)
Package depth	1.57" (40 mm)
Package height	10.2" (260 mm)
Package weight	6.35 oz (180 g)
Package type	Polybag
Insulation outer diameter	0.0413" (1.05 mm)
Harmonized System (HS) code	84733080
Master (outer) case width	11.4" (290 mm)
Master (outer) case length	13.8" (350 mm)
Master (outer) case weight	23.1 lbs (10.5 kg)
Master (outer) case height	15" (380 mm)
Quantity per master (outer) case	30 pc(s)
Sustainability compliance	Yes
