The equip® Cat.6 U/UTP Patch Cable is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.

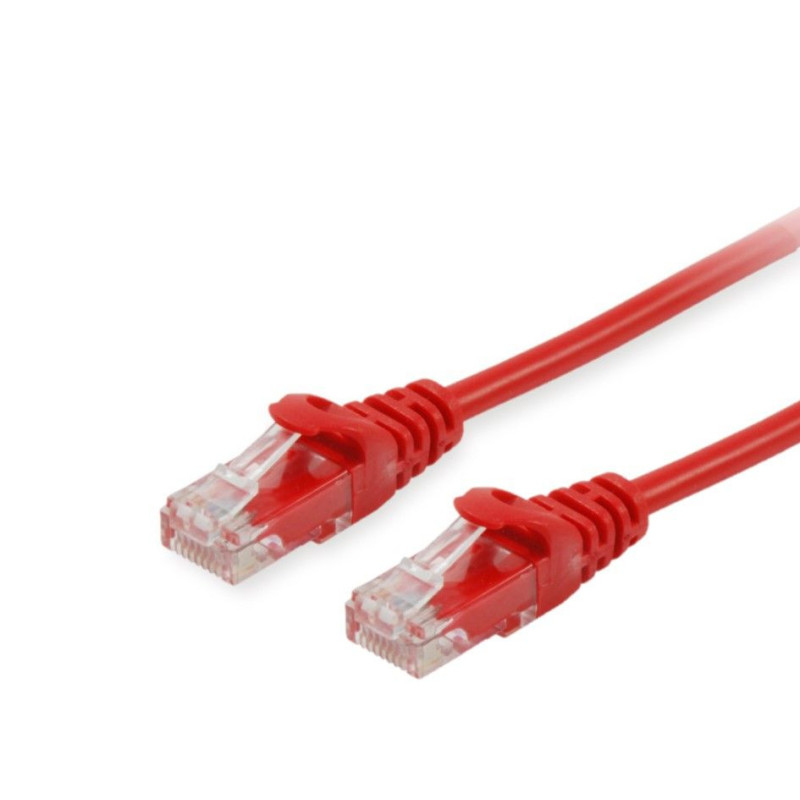

Equip 625423. Cable length: 9.84" (0.25 m), Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product color: Red

Cable length	9.84" (0.25 m)
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Product color	Red
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC)
Cable shape	Round
Conductor type	Stranded
Conductor material	Copper-clad aluminum (CCA)
Cabling technology	10GBase-T
Ethernet interface type	10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Networking standards	IEEE 802.3, IEEE 802.5
AWG wire size	26/7
Data transfer rate	10000 Mbit/s
Frequency	250 MHz
Molded cable boot	Yes
Plug and Play	Yes
Country of origin	China
Compliance certificates	CE, REACH, RoHS
Certification	ISO/IEC 11801, EN 50173
Width	0.328" (8.34 mm)
Depth	0.46" (11.7 mm)
Height	9.84" (250 mm)
Outer diameter	0.197" (5 mm)
Weight	0.635 oz (18 g)
Package width	5.51" (140 mm)
Package depth	0.394" (10 mm)
Package height	7.09" (180 mm)
Package weight	0.353 oz (10 g)
Package type	Polybag
Harmonized System (HS) code	84733080
Master (outer) case width	11.8" (300 mm)
Master (outer) case length	11" (280 mm)
Master (outer) case weight	24.3 lbs (11 kg)
Master (outer) case height	19.3" (490 mm)
Quantity per master (outer) case	600 pc(s)
Sustainability compliance	Yes
