The equip® Cat.6 S/FTP Patch Cord is composed of high-quality materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.

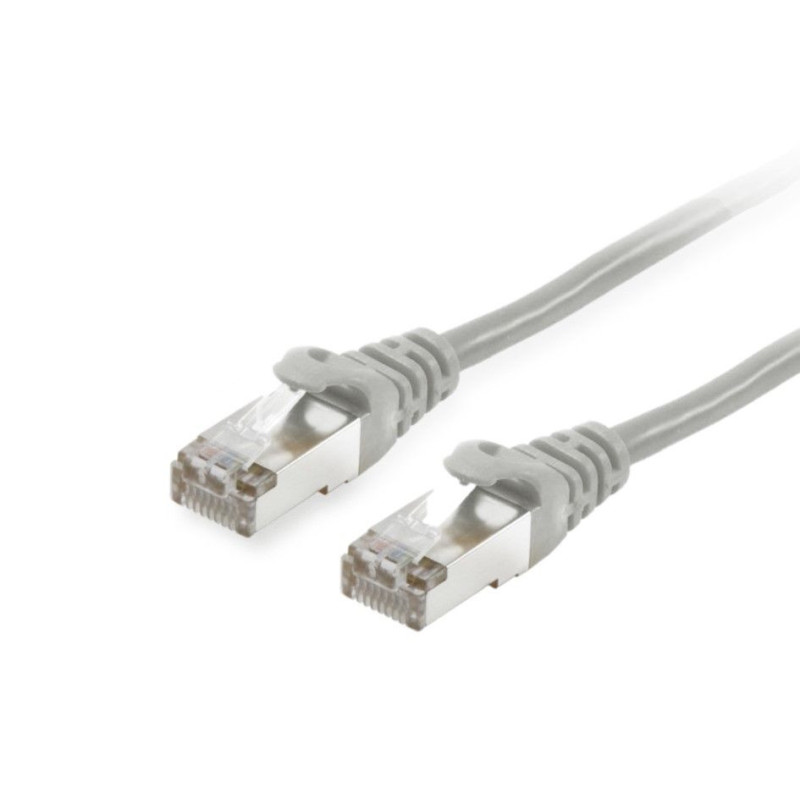

Equip 605502. Cable length: 118.1" (3 m), Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 1000 Mbit/s, Product color: Gray

Cable length	118.1" (3 m)
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Product color	Gray
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor type	Stranded
Conductor material	Copper
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Networking standards	IEEE 802.3, IEEE 802.5
AWG wire size	28/7
Data transfer rate	1000 Mbit/s
Frequency	250 MHz
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Molded cable boot	Yes
Plug and Play	Yes
Country of origin	China
Doesn't contain	Halogen
Compliance certificates	CE, REACH, RoHS, UKCA
Certification	ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
Width	0.328" (8.34 mm)
Depth	0.46" (11.7 mm)
Height	118.1" (3000 mm)
Outer diameter	0.228" (5.8 mm)
Weight	4.52 oz (128 g)
Quantity per pack	1 pc(s)
Package width	6.3" (160 mm)
Package depth	0.984" (25 mm)
Package height	7.87" (200 mm)
Package weight	2.12 oz (60 g)
Harmonized System (HS) code	84733080
Master (outer) case width	11.4" (290 mm)
Master (outer) case length	13.8" (350 mm)
Master (outer) case weight	27.6 lbs (12.5 kg)
Master (outer) case height	15" (380 mm)
Quantity per master (outer) case	100 pc(s)
Sustainability compliance	Yes
