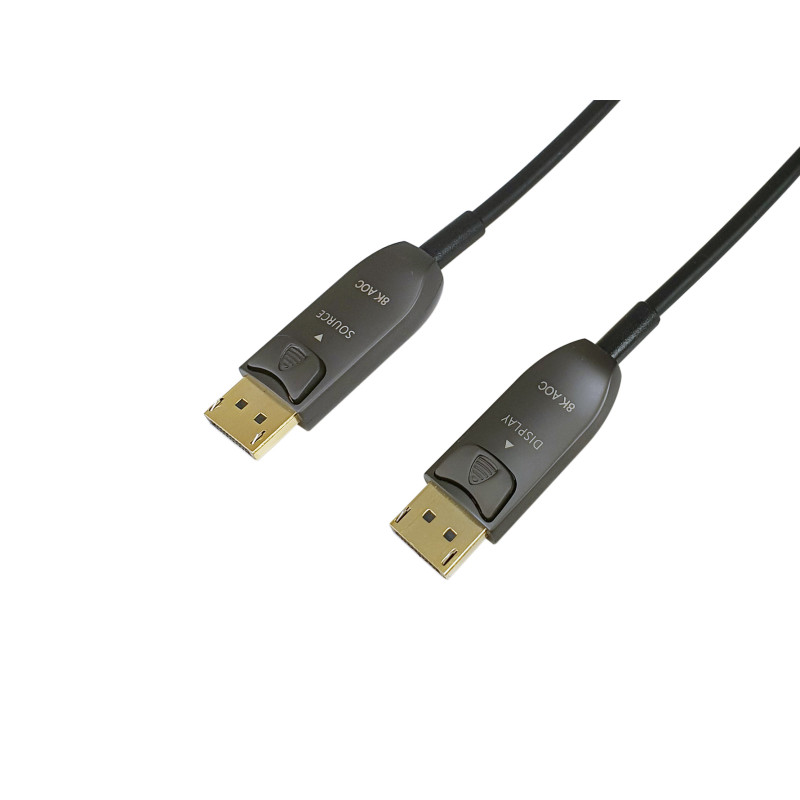

The equip 119441 DisplayPort 1.4 Active Optical Cable (AOC) is a high-performance cable used for transmitting digital video signals over long distances. Unlike copper cables, which have limitations on how far they can transmit signals without signal degradation, DisplayPort 1.4 AOC can transmit data up to 100 meters without the need for additional signal boosters or repeaters.

The cable is designed to support the DisplayPort 1.4 standard, which offers high bandwidth and supports resolutions up to 8K at 60Hz or 4K at 120Hz. DisplayPort 1.4 AOC also supports High Dynamic Range (HDR) and Display Stream Compression (DSC), which allows for even higher resolutions and refresh rates.

The active component of the cable is a microchip embedded in the connector that converts the electrical signals to optical signals, which are then transmitted over the optical fiber. The cable is also immune to electromagnetic interference (EMI) and radio frequency interference (RFI), making it ideal for use in environments with high levels of electromagnetic interference.

Equip 119441. Cable length: 590.6" (15 m), Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: CE, RoHS. Weight: 14.8 oz (420 g). Package width: 8.07" (205 mm), Package depth: 2.56" (65 mm), Package height: 8.07" (205 mm). Quantity per pack: 1 pc(s)

Cable length	590.6" (15 m)
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	7680 x 4320 pixels
Product color	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
DisplayPort version	1.4
Supported graphics resolutions	1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320
Maximum refresh rate	120 Hz
HDCP	Yes
HDCP version	2.2
Display Stream Compression (DSC)	Yes
High Dynamic Range (HDR) supported	Yes
Bandwidth	32400 MB/s
Multi-Stream Transport (MST)	Yes
Compliance certificates	CE, RoHS
Weight	14.8 oz (420 g)
Package width	8.07" (205 mm)
Package depth	2.56" (65 mm)
Package height	8.07" (205 mm)
Package type	Box
Package weight	21.5 oz (610 g)
Quantity per pack	1 pc(s)
Country of origin	China
Master (outer) case width	11.8" (300 mm)
Master (outer) case length	11" (280 mm)
Master (outer) case height	19.3" (490 mm)
Master (outer) case weight	26.9 lbs (12.2 kg)
Quantity per master (outer) case	20 pc(s)
Sustainability compliance	Yes
