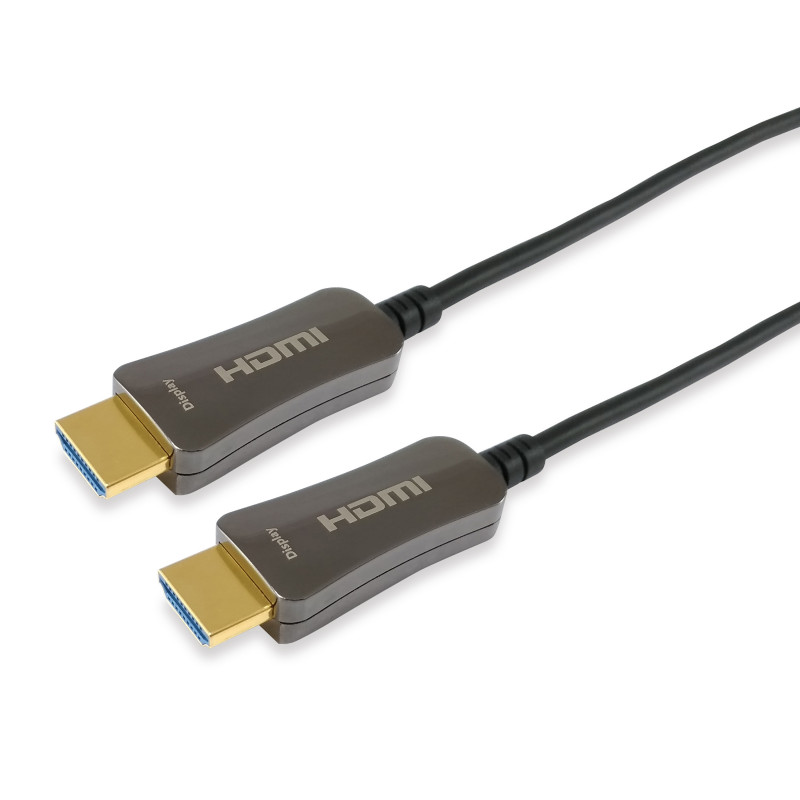

The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply.


Equip 119431. Cable length: 1968.5" (50 m), Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Product color: Black

Cable length	1968.5" (50 m)
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Product color	Black
Connector contacts plating	Gold
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI version	2.0
3D	Yes
Supported graphics resolutions	1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
HDMI Ethernet channel	Yes
HDCP	Yes
HDCP version	2.2
Bandwidth	18000 MB/s
High Dynamic Range (HDR) supported	Yes
Maximum refresh rate	240 Hz
Cable material	Copper
Cable type	Round cable
Cable jacket material	Polyvinyl chloride (PVC)
Plug and Play	Yes
Compliance certificates	CE, RoHS
Weight	3.22 lbs (1.46 kg)
Quantity per pack	1 pc(s)
Package width	10.4" (265 mm)
Package depth	2.09" (53 mm)
Package height	10.4" (265 mm)
Package weight	3.53 lbs (1.6 kg)
Package type	Box
Country of origin	China
Master (outer) case width	14.6" (370 mm)
Master (outer) case length	13" (330 mm)
Master (outer) case height	18.9" (480 mm)
Master (outer) case weight	37 lbs (16.8 kg)
Quantity per master (outer) case	10 pc(s)
Sustainability compliance	Yes
