80 PLUS BRONZE CERTIFIED
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

Reliable Flat Cable
P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.

120mm Silent Hydraulic Bearing (HYB) Fan
120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

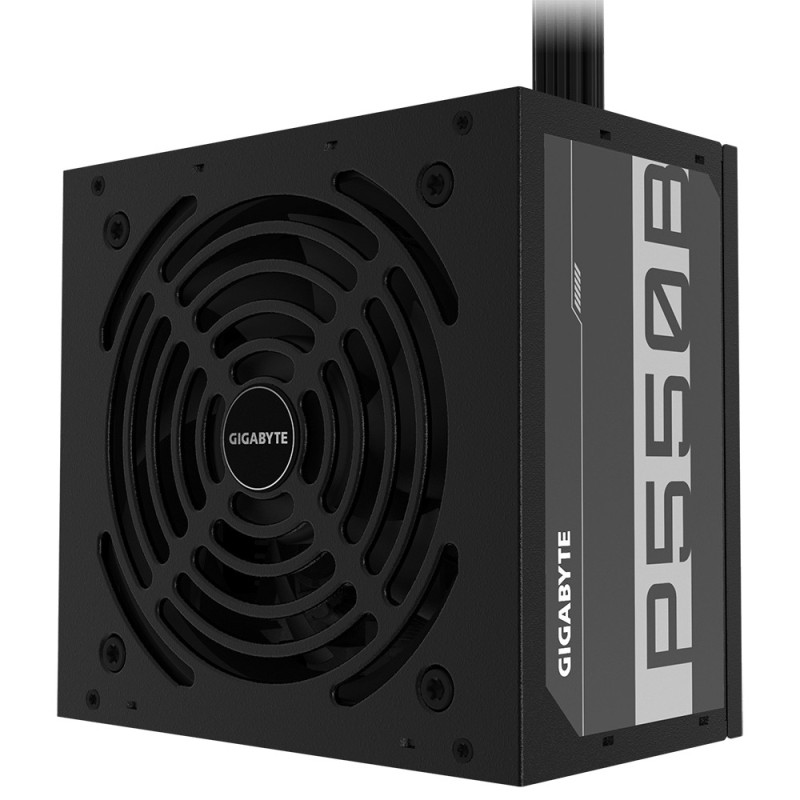

GIGABYTE P550B. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 21.7" (55 cm), SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.91" (150 mm), Depth: 5.51" (140 mm), Height: 3.39" (86 mm)

Total power	550 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	8 - 4 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	108 W
Combined power (+12V)	522 W
Combined power (+5V)	108 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	18 A
Max output current (+12V)	43.5 A
Max output current (+5V)	15 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	16 ms
Efficiency	85%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	21.7" (55 cm)
Number of SATA power connectors	6
SATA power cable length	500 mm
Peripheral (Molex) power cable length	500 mm
PCI Express power connectors (6+2 pin)	2
PCI Express power cable length	21.7" (55 cm)
CPU power connector (4+4 pin)	Yes
CPU power cable length	23.6" (60 cm)
ATX power connector (20+4 pin)	Yes
Floppy drive power connector	1
Floppy disk drive connector	Yes
PCI Express connector	Yes
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	2.31
Bearing technology	HDB
Mean time between failures (MTBF)	100000 h
Product color	Black
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Width	5.91" (150 mm)
Depth	5.51" (140 mm)
Height	3.39" (86 mm)
Harmonized System (HS) code	84733020
