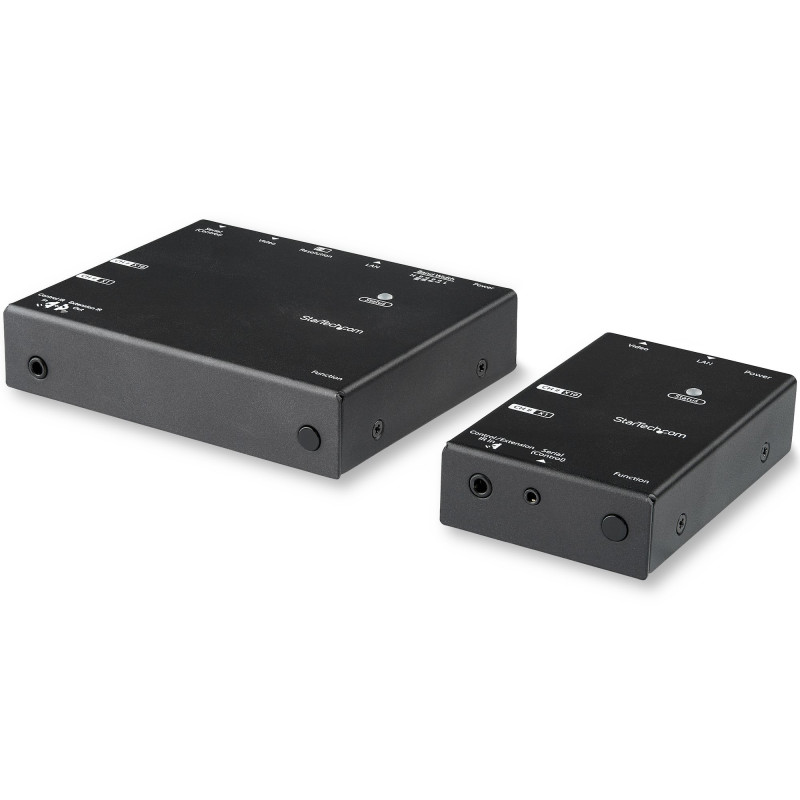

Transmitter & Receiver | 1920 x 1080 (1080p) | Mountable | Multicast & Unicast

Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.

Ideal for Universities, Offices, and Restaurants

Reliably Extend Compressed HDMI Video with Bandwidth Efficiency

This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.

With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.

Flexible & Scalable Deployment Options

The HDMI over LAN extender offers many configurations to accommodate your set up.

This HDMI video extender provides four ways to control your video network configurations.

Rotary DIP switches located on the Tx and Rx
• Your computer connected to the transmitter or receiver via a serial cable
• Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
• Infrared (IR) remote control using the included receiver

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

The StarTech.com Advantage


StarTech.com ST12MHDLNHK. Type: AV transmitter & receiver, Maximum resolution: 1920 x 100 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired, USB connector type: Mini-USB B, Audio input: 3.5 mm. AC input voltage: 100 - 240 V, Operating voltage: 5 V, Input current: 0.3 A. Weight: 7.05 lbs (3.2 kg). Package width: 3.62" (92 mm), Package depth: 4.25" (108 mm), Package height: 0.945" (24 mm)

Type	AV transmitter & receiver
Maximum resolution	1920 x 100 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	590.6" (15 m)
Maximum refresh rate	60 Hz
Audio output channels	2.0 channels
LED indicators	Status
Supported video modes	1080p
Material	Aluminum
Rack mounting	Yes
Daisy chain	Yes
Rubber feet	Yes
Product color	Black
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
USB ports quantity	2
USB connector type	Mini-USB B
Audio input	3.5 mm
Audio output	3.5 mm
Remote (IR) input	1
Remote (IR) output	1
AC input voltage	100 - 240 V
Operating voltage	5 V
Input current	0.3 A
Output current	1 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight	7.05 lbs (3.2 kg)
Package width	3.62" (92 mm)
Package depth	4.25" (108 mm)
Package height	0.945" (24 mm)
AC adapter included	Yes
Cables included	LAN (RJ-45), Serial, USB
Included power plug types	ANZ, EU, NA, UK
Manual	Yes
IR blaster included	Yes
IR receiver included	Yes
Handheld remote control	Yes
Mounting brackets included	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Master (outer) case width	12.8" (324 mm)
Master (outer) case length	16" (406 mm)
Master (outer) case height	10.3" (262 mm)
Quantity per master (outer) case	6 pc(s)
Sustainability compliance	Yes
