The black flat cable reduces the clutter and improves the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

DIMENSIONS
Compact size to fit any small chassis.

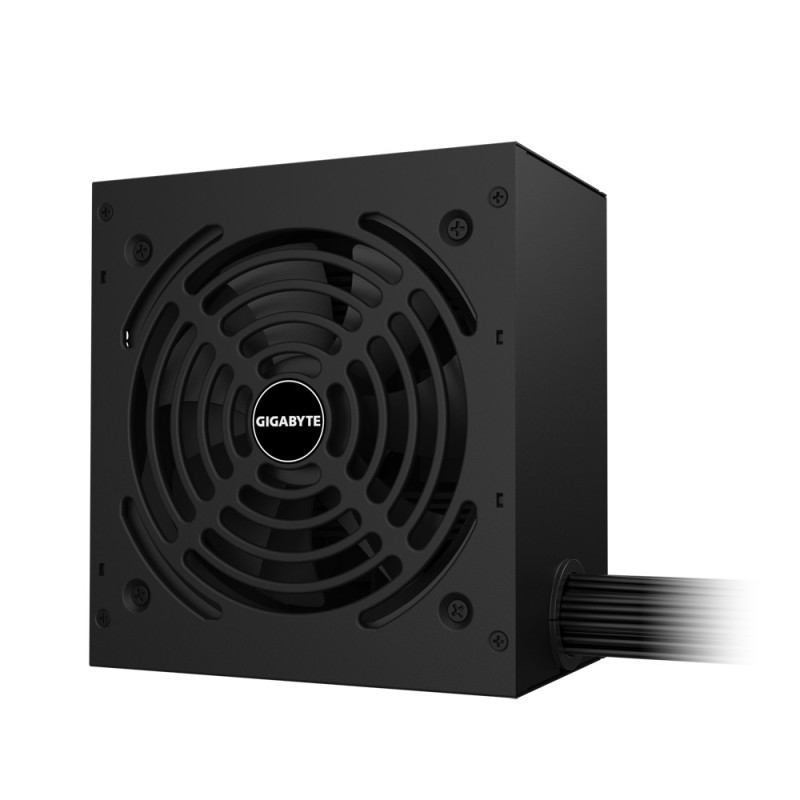

GIGABYTE GP-P650G. Total power: 650 W, AC input voltage: 100 - 240 V, Input current: 12 - 6 A. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 19.7" (50 cm), SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.51" (140 mm), Depth: 5.91" (150 mm), Height: 3.39" (86 mm)

Total power	650 W
AC input voltage	100 - 240 V
Input current	12 - 6 A
Maximum input current (@110V)	12 A
Maximum input current (@220V)	6 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	650 W
Combined power (+5V)	650 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54.17 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	20 A
Power protection features	Over power, Overcharge, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	19.7" (50 cm)
Number of SATA power connectors	6
SATA power cable length	150,500 mm
Peripheral (Molex) power cable length	150,500 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	25.6" (65 cm)
CPU P4 connector (4-pin)	1
CPU power connector (4+4 pin)	Yes
CPU power cable length	23.6" (60 cm)
ATX power connector (20+4 pin)	Yes
Floppy disk drive connector	Yes
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	2.31
Noise level	39 dB
Bearing technology	HDB
Mean time between failures (MTBF)	100000 h
Product color	Black
Cooling type	Active
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Width	5.51" (140 mm)
Depth	5.91" (150 mm)
Height	3.39" (86 mm)
Package type	Box
