Scan anywhere
The DS-80W has built-in Wi-Fi and battery with an LCD Panel, providing true mobility to scan anywhere at speeds of just 4 seconds per page. When fully charged, scan up to 300 pages without the need for a power source. This makes it ideal for mobile workers who need to scan on the move or in areas with limited space.

Highly organised
Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents makes scanning easy – and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up scanning process, while the CIS sensor delivers instant scanning with no warm up time. The new LCD panel makes it easy to define job tasks when working remotely.

Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.

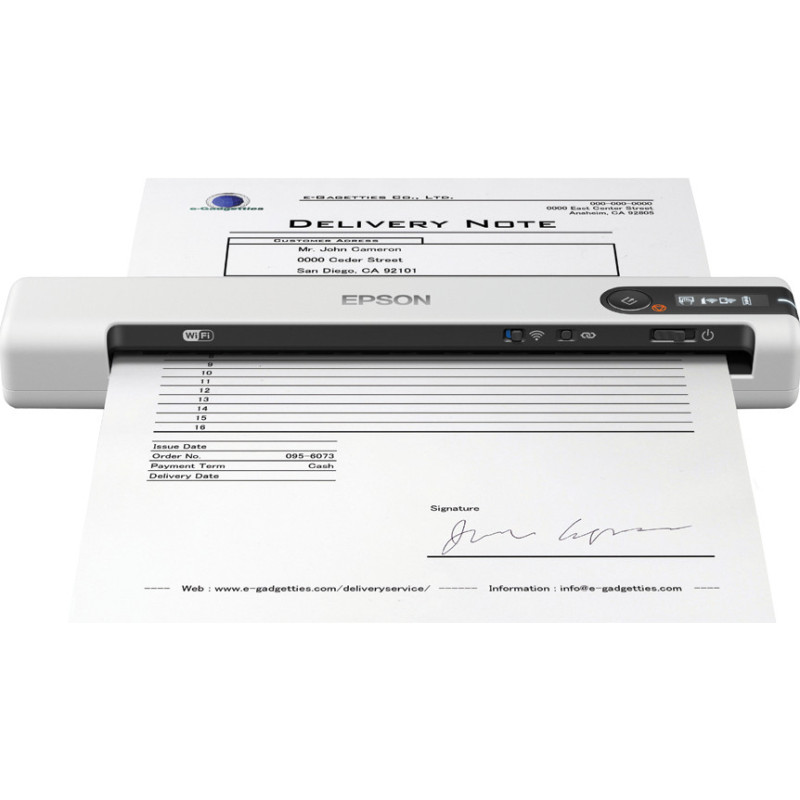

Epson WorkForce DS-80W. Maximum scan size: 8.5 x 72" (216 x 1828 mm), Optical scanning resolution: 600 x 600 DPI, Input color depth: 48 bit. Scanner type: Handheld scanner, Product color: White, Display: LCD. Sensor type: CIS, Daily duty cycle (max): 300 pages, Light source: ReadyScan LED. Auto document feeder (ADF) input capacity: 1 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), Paper tray media weight: 35 - 270 g/m²

Maximum scan size	8.5 x 72" (216 x 1828 mm)
Optical scanning resolution	600 x 600 DPI
Duplex scanning	No
Color scanning	Yes
Input color depth	48 bit
Output color depth	24 bit
Input grayscale depth	16 bit
Output grayscale depth	8 bit
Output monochrome depth	8 bit
Scan speed (b/w, low res, A4)	4 sec/page
Scan speed (color, low res, A4)	4 sec/page
Scanner type	Handheld scanner
Built-in display	Yes
Product color	White
Display	LCD
Color display	No
Sensor type	CIS
Daily duty cycle (max)	300 pages
Light source	ReadyScan LED
Scan file formats	BMP, JPEG, PDF, PNG, TIFF
Scan drivers	TWAIN, WIA, SANE, ICA
Auto document feeder (ADF) input capacity	1 sheets
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plastic Card, Post Card(JPN)
Paper tray media weight	35 - 270 g/m²
Auto Document Feeder (ADF) media weight	35 - 270 g/m²
USB port	Yes
USB version	2.0
Standard interfaces	USB 2.0, Wireless LAN
Wi-Fi	Yes
Power supply type	USB
Width	10.7" (272 mm)
Depth	1.85" (47 mm)
Height	1.34" (34 mm)
Weight	10.6 oz (300 g)
Quantity per pack	1 pc(s)
Package width	5.55" (141 mm)
Package depth	13" (330 mm)
Package height	2.64" (67 mm)
Package weight	21.1 oz (597 g)
Cables included	USB
Bundled software	Document Capture Pro 2.0, Epson Scan 2
Compatible operating systems	Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 90%
Image formats supported	BMP, JPEG, TIFF, PNG
Quantity per pallet	360 pc(s)
Country of origin	China
Pallet weight	0 oz (0 g)
Master (outer) case length	14.2" (360 mm)
Master (outer) case height	12.6" (320 mm)
Master (outer) case width	13.8" (350 mm)
Master (outer) case weight	0 oz (0 g)
Pallet length	47.2" (120 cm)
Pallet width	31.5" (80 cm)
Pallet height	67.3" (171 cm)
Quantity per master (outer) case	10 pc(s)
Quantity per pallet layer	60 pc(s)
Quantity per pallet layer (UK)	60 pc(s)
Quantity per pallet (UK)	360 pc(s)
Pallet weight (UK)	0 oz (0 g)
Pallet length (UK)	47.2" (120 cm)
Pallet width (UK)	39.4" (100 cm)
Pallet height (UK)	67.3" (171 cm)
Master (outer) case GTIN (EAN/UPC)	8715946663005
Harmonized System (HS) code	84716070
Output resolutions	600 dpi
