What This Product Does

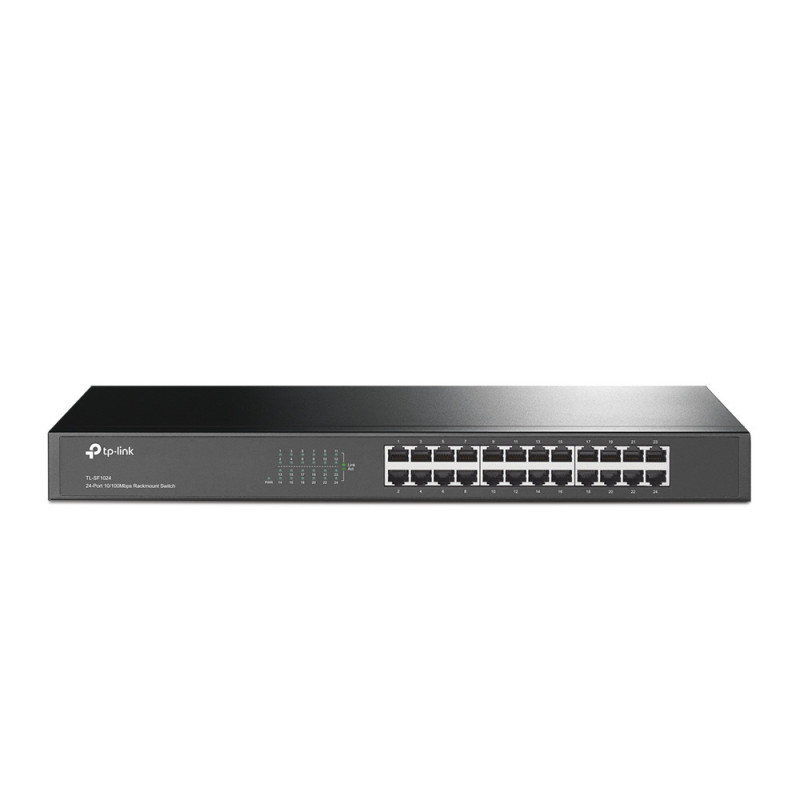

The 24-Port 10/100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024 work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

TP-Link TL-SF1024. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	24
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	No
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Routing entries	1
Flow control support	Yes
Auto MDI/MDI-X	Yes
MAC address table	8000 entries
Switching capacity	4.8 Gbit/s
Store-and-forward	Yes
MAC address filtering	Yes
Rack mounting	Yes
Stackable	No
Product color	Black
LED indicators	Activity, Link
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	3.53 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	17.3" (440 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Quick start guide	Yes
Shipping (inner) case height	0.0394" (1 mm)
Shipping (inner) case width	0.0394" (1 mm)
Shipping (inner) case length	0.0394" (1 mm)
Shipping (inner) case net weight	0.0353 oz (1 g)
Quantity per shipping (inner) case	11 pc(s)
Number of cartons per pallet layer	1 pc(s)
Number of layers per pallet (air)	1 pc(s)
Number of layers per pallet (sea)	1 pc(s)
Pallet gross weight (air)	0.0353 oz (1 g)
Number of cartons per pallet (air)	11 pc(s)
Quantity per pallet (air)	1 pc(s)
Pallet length	0.0394" (1 mm)
Pallet width	0.0394" (1 mm)
Pallet height (air)	0.433" (1.1 cm)
Pallet gross weight (sea)	0.0353 oz (1 g)
Number of cartons per pallet (sea)	1 pc(s)
Quantity per pallet (sea)	1 pc(s)
Pallet height (sea)	0.433" (1.1 cm)
Certification	FCC, CE, RoHS
Harmonized System (HS) code	85176990
