Bigger, better, & born to conquer
Decimate the competition with up to 12th Gen Intel® Core™ processors, the latest NVIDIA® GeForce RTX™ graphics, and the awesome Legion AI Engine, auto-detecting and auto-optimizing your in-game performance. Vanquish all your foes in stunning, precise WQHD+. And with a sleek Storm Gray or Glacier White chassis, the only other decision you’ll need to make is your trophy’s colour.

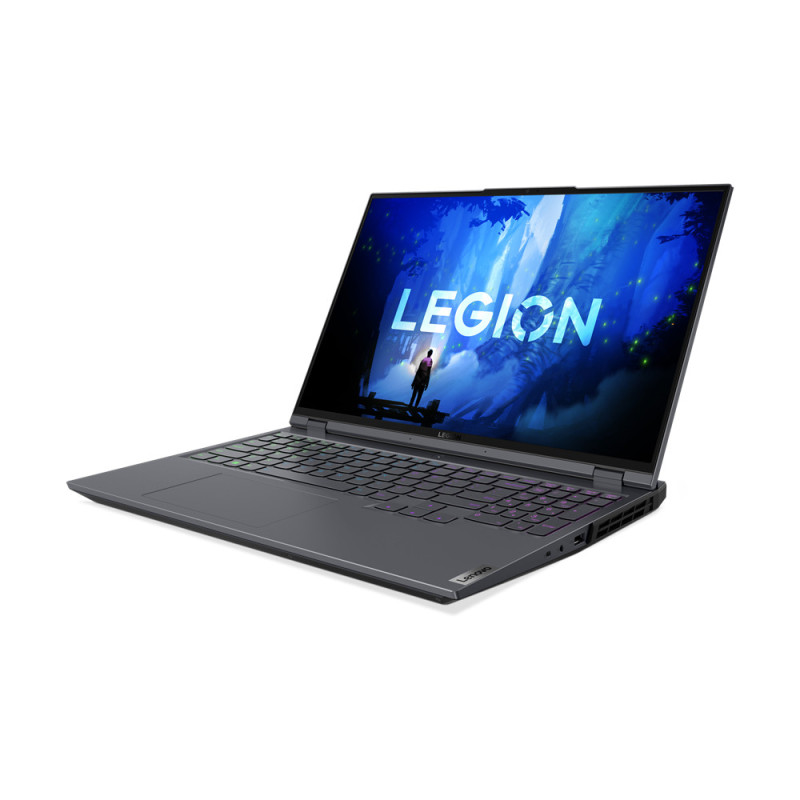

Lenovo Legion 5 Pro 16IAH7H. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-12700H. Display diagonal: 16", HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics, Discrete graphics card model: NVIDIA GeForce RTX 3070. Operating system installed: Windows 11 Home. Product color: Gray

Product type	Laptop
Product color	Gray
Form factor	Clamshell
Color name	Storm Grey
Housing material	Aluminum
Market positioning	Gaming
Introduction year	2022
Display diagonal	16"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
RGB color space	sRGB
Color gamut	100%
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range (HDR) 400
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-12700H
Processor generation	12th gen Intel® Core™ i7
Processor cores	14
Processor boost frequency	4.7 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Configurable TDP-down	35 W
Internal memory	16 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel
Total storage capacity	512 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3070
On-board graphics card model	Intel Iris Xe Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card 4K support	Yes
Graphics card Open GL support	Yes
NVIDIA G-SYNC	Yes
Audio chip	Realtek ALC3287
Audio system	Nahimic Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1
Motherboard chipset	Intel SoC
Numeric keypad	Yes
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	RGB
Island-style keyboard	Yes
Keyboard language	Italian
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Operating system language	English, Italian
Trial software	Office Trial
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Execute Disable Bit	Yes
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Battery capacity	80 Wh
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	4.01 h
Fast charging	Yes
AC adapter power	300 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes
USB Power Delivery	Yes
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Compliance certificates	RoHS
Certification	TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light
Sustainability certificates	ErP
Weight	5.49 lbs (2.49 kg)
Width	14.2" (359.9 mm)
Depth	10.4" (264.4 mm)
Height	0.783" (19.9 mm)
