What This Product Does

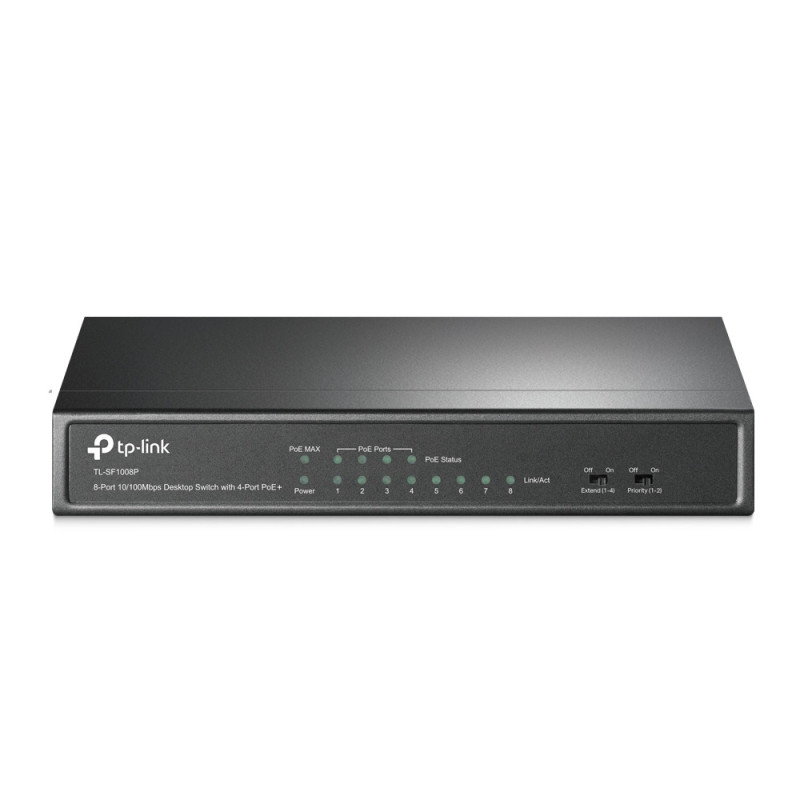

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to ­fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

-Overload Arrangement
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o‑ the power of the lowest-priority port.

-Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use
TL-SF1008P is easy to install and use. It requires no confi­guration and installation. With desktop design, outstanding performance and quality, the TP-LINK’s TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

TP-Link TL-SF1008P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	8
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
MAC address table	2000 entries
Switching capacity	1.6 Gbit/s
Forwarding rate	1.1904 Mpps
Store-and-forward	Yes
IPv4 & IPv6 features	IPv6 portal
Rack mounting	No
Stackable	No
Product color	Black
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
Fanless	Yes
Power source	DC/PoE
Power supply included	No
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (max)	66 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	57 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	248.93 BTU/h
Width	6.73" (171 mm)
Depth	3.86" (98 mm)
Height	1.06" (27 mm)
User guide	Yes
AC adapter included	Yes
Package type	Box
Package width	8.78" (223 mm)
Package depth	11" (280 mm)
Package height	2.68" (68 mm)
Package weight	34.2 oz (970 g)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
