- 10-point Projected Capacitive Touch
- SuperClear® MVA-type panel technology
- Frameless Design
- Versatile Connectivity
- Durable, Scratch-resistant Screen

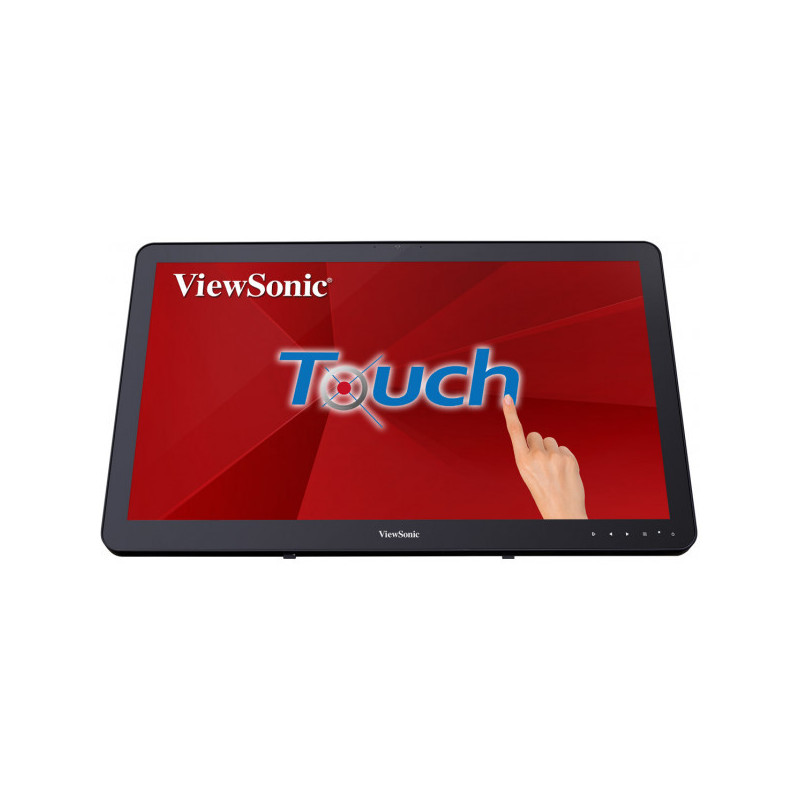

Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.

*Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.

Viewsonic TD2430. Display diagonal: 23.6", Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product color: Black

Display diagonal	23.6"
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	Yes
HD type	Full HD
Panel type	VA
Response time	5 ms
Screen shape	Flat
Contrast ratio (typical)	3000:1
Maximum refresh rate	76 Hz
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	200 cd/m²
Contrast ratio (dynamic)	50000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.0107 x 0.0107" (0.272 x 0.272 mm)
Horizontal scan range	24 - 82 kHz
Vertical scan range	50 - 75 Hz
Display diagonal (metric)	23.6" (60 cm)
NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android
Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	5 W
Built-in microphone	No
Product color	Black
Built-in USB hub	Yes
HDMI	Yes
Headphone out	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone outputs	1
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
Tilt adjustment	Yes
Tilt angle range	20 - 53°
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	15 kWh
Power consumption (typical)	25 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	AC
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	5 - 90%
Width (with stand)	22.6" (573 mm)
Depth (with stand)	1.85" (47 mm)
Height (with stand)	13.9" (353 mm)
Weight (with stand)	12.1 lbs (5.51 kg)
Package width	25.3" (643 mm)
Package depth	5.51" (140 mm)
Package height	17.1" (435 mm)
Package weight	15.6 lbs (7.08 kg)
Cables included	AC, Audio (3.5mm), HDMI, USB
Sustainability certificates	ENERGY STAR, ErP
Display viewable area (HxV)	20.5 x 11.5" (521.3 x 293.2 mm)
Mobile operating systems supported	Android
Compliance certificates	CE, REACH, RoHS
Certification	cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP
Harmonized System (HS) code	85285210
European Product Registry for Energy Labelling (EPREL) code	404623
