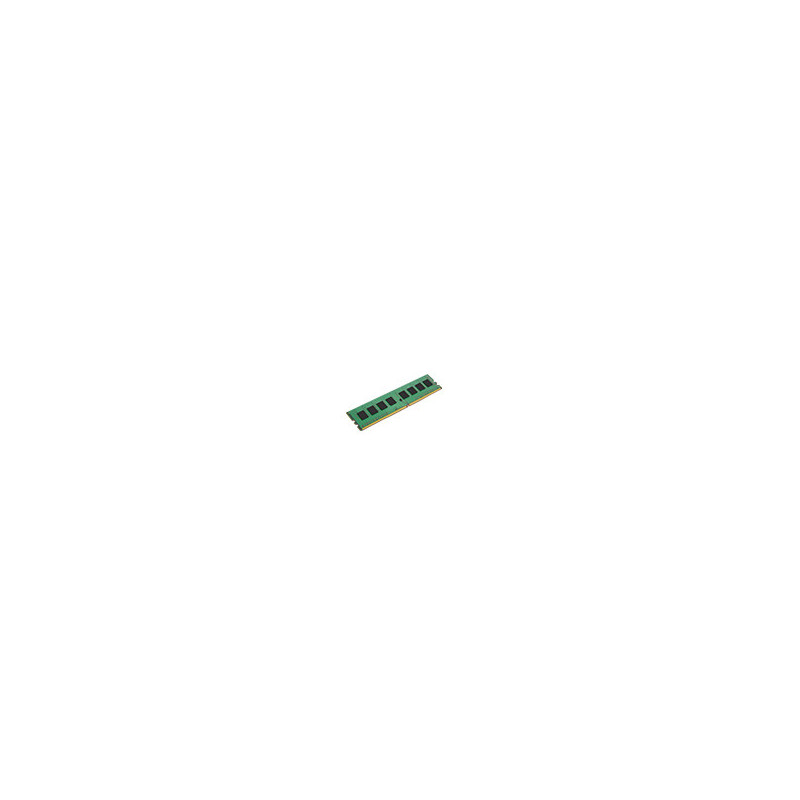

ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Kingston Technology ValueRAM KVR32N22S8/8. Component for: PC/server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory clock speed: 3200 MHz, Memory form factor: 288-pin DIMM, CAS latency: 22

Internal memory	8 GB
Memory layout (modules x size)	1 x 8 GB
Internal memory type	DDR4
Memory clock speed	3200 MHz
Component for	PC/server
Memory form factor	288-pin DIMM
ECC	No
Buffered memory type	Unregistered (unbuffered)
CAS latency	22
Memory ranking	1
Memory voltage	1.2 V
Module configuration	1024M x 64
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Programming power voltage (VPP)	2.5 V
Country of origin	Taiwan
Lead plating	Gold
JEDEC standard	Yes
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Compliance certificates	RoHS
Doesn't contain	Halogen
Width	5.25" (133.3 mm)
Height	1.23" (31.2 mm)
Harmonized System (HS) code	84733020
