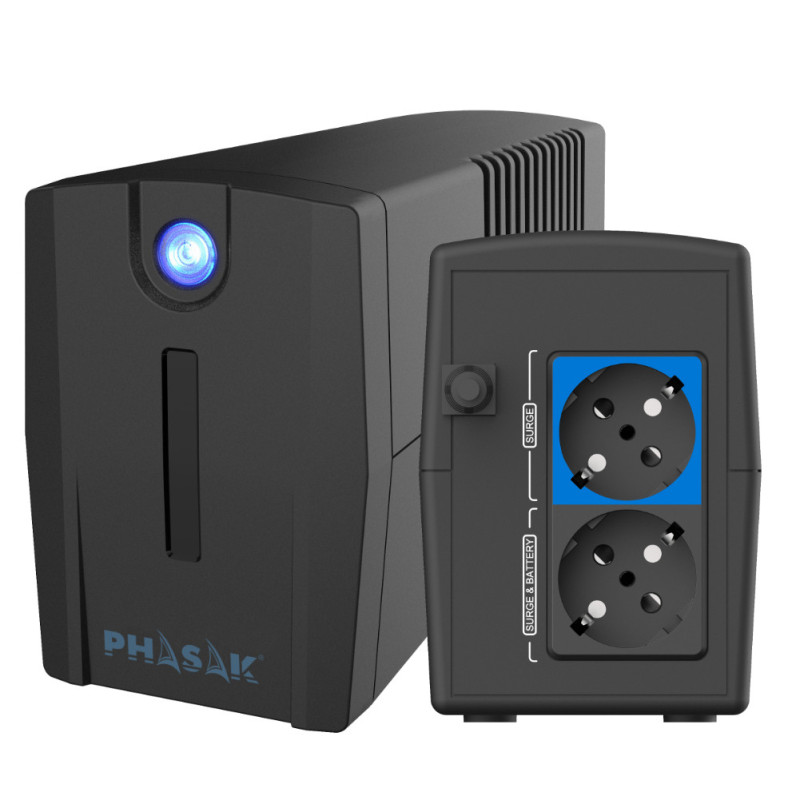

Phasak PH 7210. UPS Topology: Interactive line, Output power: 1,06 kVA, Output power: 600 W. Output type AC: Type F, Power socket: Type F, Quantity AC sockets: 2 AC sockets. Battery technology: Lead-Calcio (Pb-Ca), Battery Capacity: 9 Ah, Battery Voltage: 12 V. Form factor: Compact, Product color: Black, Rack Capacity: 0U. UN Number: EN-IEC 62040-1, Compliance Certificates: CE, RoHS

Topology UPS	Interactive line
Output power	1,06 kva
Output power	600 W
Waveform	Pseudo without
Input operating voltage (min)	162 V
Input operating voltage (max)	290 V
Input frequency	50/60 Hz
Operating output voltage (min)	220 V
Output voltage (max)	240 V
output frequency	50/60 Hz
Output frequency adjustment	50/60 Hz
Output voltage adjustment	1%
Automatic voltage regulator (AVR)	Yes
Response time	4 ms
Number of input stages	1
Number of output stages	1
Power factor	0,6
Input power factor	1
Output power factor	0,6
eCO mode	No
Emergency shutdown (EPO)	No
Output voltage Harmonic distortion Total (THD)	1%
Harmonic distortion Total (THD) of current input	1%
Acoustic emissions	40 dB
Overvoltage protection	No
Power protection features	Supercharging, Overload, Surheating, Overload
Sound alarms	Yes
Sound alarm mode	Battery Replacement, Ease, Low Battery Alarm, Overload Alarm
Automatic restart	Yes
Automatic shutdown	Yes
Removable power cord	Yes
Automatic shutdown	No
Output type CA	Type F
Power socket	Type F
Quantity AC sockets	2 AC sockets
Number of type F outputs	2
Number of outputs (reservation and protection battery)	2
IEC output jumper number	0
Number of outputs (Protection)	1
USB port	No
Quantity USB 2.0 ports	0
Serial interface	No
Serial ports	0
RS-232 port	0
Modem port (RJ-11)	0
Quantity of Ethernet LAN ports (RJ-45)	0
Emergency Connector for Switching (EPO)	No
Remote Switching Connector (RPO)/Remote Switching (ROO)	No
SmartSlot	No
Programmable loans	No
Battery technology	Piombo-Calcio (Pb-Ca)
Battery capacity	9 Ah
Battery Voltage	12 V
Number of batteries	1
Minimum full load saving time	20 min
Minimum saving time by load	10 min
Battery life (maximum)	3 years
Charging time	8 h
Battery charging time (90%)	8 h
automatic battery test	No
Cold start	Yes
Form factor	Compact
Product color	Black
Rack capacity	0
Cable length	1 m
Modular	No
Cooling Type	Passive
Integrated fan	Yes
Fan speed control	No
Type of control	Bottoni
Type of display	LED LED
LED indicators	Alarm, Battery Level, Check, Error
International Protection Code (IP)	IP20, IP54
Operating temperature range	0 - 40 °C
Temperature range	0 - 40 °C
Operating humidity range	0 - 90%
Relative humidity	0 - 90%
Altitude of operation	0 - 2400 m
Non-functional Altitude	2400 - 3000 m
Compliance with waste of electrical and electronic equipment (EEA)	Yes
Number One	IT-IEC 62040-1
Certificates of conformity	CE, RoHS
Batteries included	Yes
Rack Mounting Kit	No
Cables included	Incoming power cord
User Manual	Yes
Quick Installation Guide	Yes
Width	96 mm
Depth	286 mm
Height	138 mm
Weight	3,9 kg
Battery Width	9.4 cm
Battery depth	6,5 cm
Battery height	15,1 cm
Battery weight	2,2 kg
Extended battery module width	0 mm
Extended battery module depth	0 mm
Extended battery module height	0 mm
Support	No
Rubber feet	No
Management card included	Yes
Installation CD	No
CD Software	No
Languages of manual	English, ESP, Portuguese
Width packing	323 mm
Packaging depth	300 mm
Height packing	146 mm
Packaging weight	4 kg
Type of packaging	Box
Warranty duration	3 years
Conformity to sustainability	Yes
