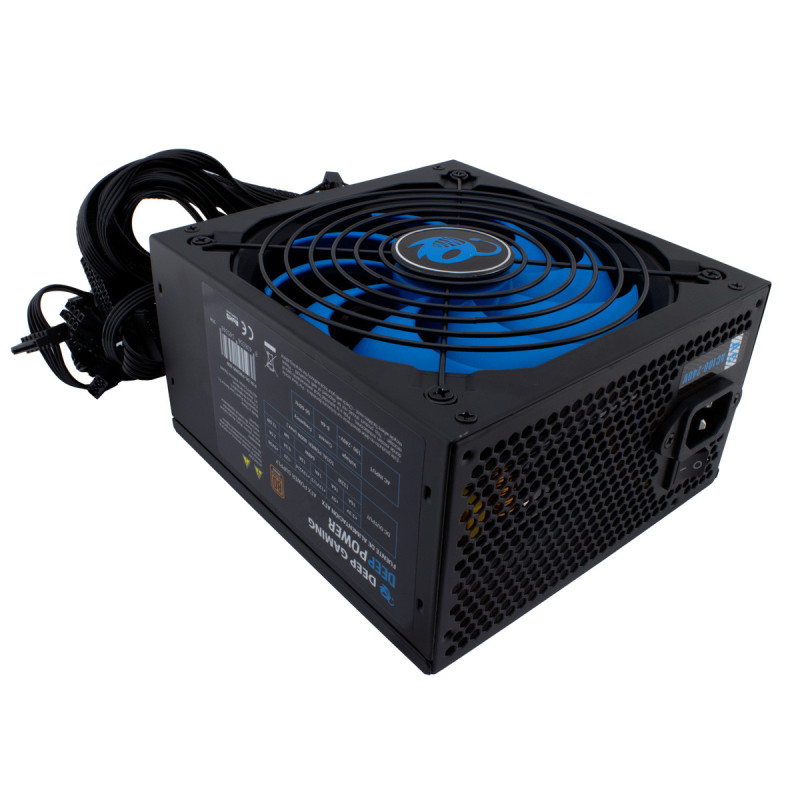

Deep Gaming DeepPower BR-650. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC/server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 5.51" (14 cm). Cables included: AC

Total power	650 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Maximum input current (@110V)	8 A
Maximum input current (@220V)	4 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	115 W
Combined power (+12V)	528 W
Combined power (+5V)	115 W
Combined power (-12V)	6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	18 A
Max output current (+12V1)	22 A
Max output current (+12V2)	22 A
Max output current (+5V)	18 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	2.5 A
Hold time	17 ms
Efficiency	85%
Power Good signal delay range	100 - 500 ms
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	4
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	1
CPU power connector (4+4 pin)	Yes
Floppy drive power connector	1
Floppy disk drive connector	Yes
PCI Express connector	Yes
Cabling type	Non-Modular
Purpose	PC/server
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	2.31
Noise level	25 dB
Mean time between failures (MTBF)	100000 h
Product color	Black
Cooling type	Active
Fan diameter	5.51" (14 cm)
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
Cables included	AC
Compliance certificates	RoHS
Certification	CE, WEEE
Weight	4.63 lbs (2.1 kg)
Manual	Yes
Package type	Box
