The APIII550 power supply, with 550W and manufactured with high quality and reliable components using the latest SMD manufacturing technology, 12V single rail technology and double-layer fiberglass PCB components, achieves a Bronze efficiency level of 85%.

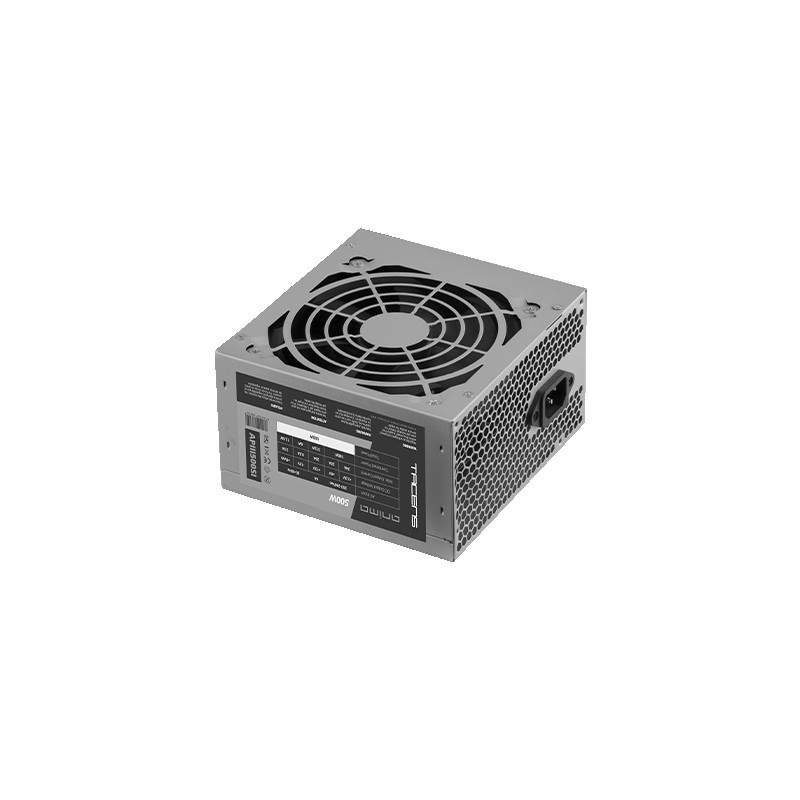

Tacens Anima ATX 500W. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 14 dB. Product color: Silver, Fan diameter: 4.72" (12 cm), Number of fans: 1 fan(s). Safety: OPP/OVP/ UVP/SCP

Total power	500 W
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Input current	4 A
Combined power (+3.3V)	180 W
Combined power (+12V)	312 W
Combined power (+5V)	180 W
Combined power (-12V)	6 W
Max output current (+3.3V)	24 A
Max output current (+12V)	26 A
Max output current (+5V)	25 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over power, Over voltage, Under voltage
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	2
Number of PATA power connectors	1
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
Noise level	14 dB
Product color	Silver
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
On/off switch	No
Safety	OPP/OVP/ UVP/SCP
Width	11.5" (291 mm)
Depth	13.6" (345 mm)
Height	7.4" (188 mm)
